Square-D / Schneider - Square D NSYTRV42RD 4 mm 2-Point Red 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

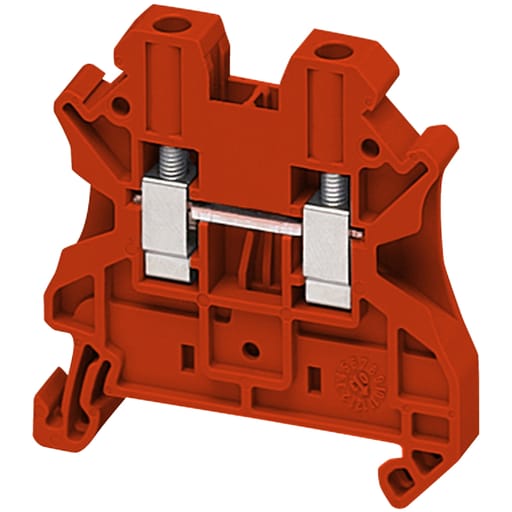

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This red feed through terminal block has 2 terminal points. This terminal block has screw termination. The terminals are rated 30 A at 600 volts. The terminals will accept wires from 26 AWG to 10AWG. With the help of a screw driver the block will mount on 35mm DIN rail. Each block is 1.87 inches tall, 0.24 inches wide and 1.88 inches deep. Each wieghs 0.33 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRAB610; NSYTRV42; NSYTRAABV35; NSYTRAB620; NSYTRV42AR; NSYTRAB630; NSYTRAC22; NSYTRV42BK; NSYTRAB640; NSYTRV42BL; NSYTRAB650; NSYTRAP22; NSYTRV42GN; NSYTRAL42; NSYTRV42PE; NSYTRAL43; NSYTRV42WH; NSYTRAB680; NSYTRAL44; NSYTRAL45; NSYTRAL410; NSYTRAB61100; NSYTRAL420; NSYTRAB6L1N; NSYTRAL410BL; NSYTRABPV6; NSYTRAL410GR; NSYTRAATM1; NSYTRAATP1; NSYTRAFT; NSYTRACS4; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
