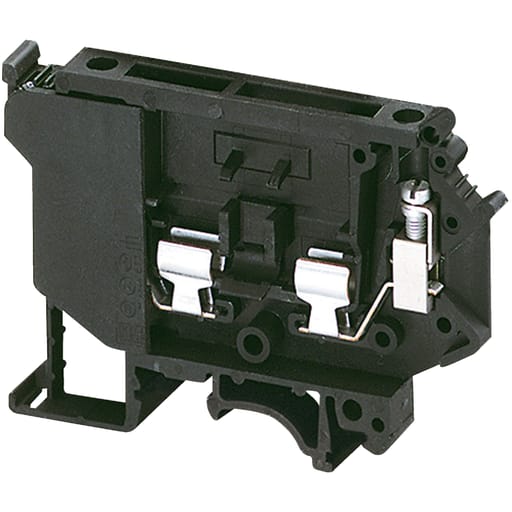

Square-D / Schneider - Square D NSYTRV42SF5LA 4 mm 2-Point Black 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

CopyCopy
Square-D / Schneider - Square D NSYTRV42SF5LA 4 mm 2-Point Black 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480532354

  • Amperage - 6.3 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK

  • Catalog Number - NSYTRV42SF5LA

  • Color - Black

Packaging

  • 1 ea

EAN

03606480532351

Part #

173651

Catalog #

NSYTRV42SF5LA

Commercial reference

NSYTRV42SF5LA

12-Digit UPC:

606480532354

Amperage:

6.3 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK

Catalog Number:

NSYTRV42SF5LA

Color:

Black

Conductor Size:

0.01 in. (4 mm.)

Country of Origin:

Turkey

ERP_productname:

SQD NSYTRV42SF5LA SCREW TERMINAL FUSE5X20 110-250V LED,4MM

Family Brand Name:

Schneider Electric

Heights:

56.5 mm

Length:

72.5 mm

Material:

Polyamide

Mounting Type:

Clip-On

Size:

2.22 in

Sub Brand:

TRV;Linergy

Tc Connection:

1 X SCREW TERMINAL UPSTREAM-1 X SCREW TERMINAL DOWNSTREAM

Type:

Spacial enclosures;Terminal block;Fused disconnect

Voltage:

500 Volt

Widths:

8.2 mm

Wire Size:

0.01 in. (4 mm.)

SoneparProductId:

SKU_US_30961305

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 5x20 mm, 5x25 mm or 5x30 mm fuses. This fuseholder has a UL rating of 12 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 10AWG. This fuse holder has a 110 to 250 VAC/DC blown fuse indicator light to make trouble shooting fastger. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.22 inches tall, 0.32 inches wide and 2.85 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRAABV35; NSYTRAATM1; NSYTRAATP1; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
