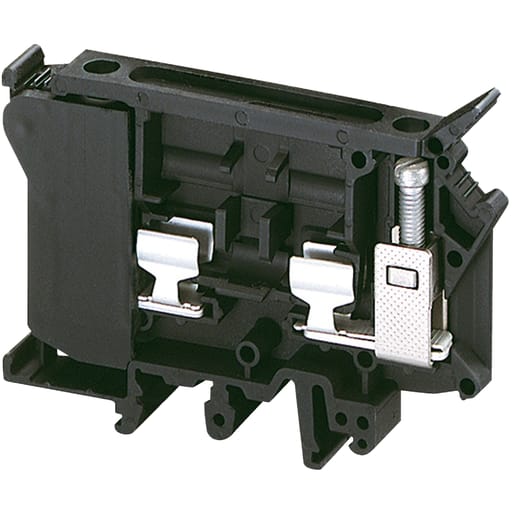

Square-D / Schneider - Square D NSYTRV42SF6 4 mm 2-Point Black 26 to 8 AWG Solid/Stranded Copper Screw Terminal Block

Essential specifications

12-Digit UPC - 606480532361
Amperage - 10 Amp
Applications - PROTECTION
Catalog Number - NSYTRV42SF6
Color - Black

Packaging

1 ea

EAN

03606480532368

Part #

203577

Catalog #

NSYTRV42SF6

Commercial reference

NSYTRV42SF6

12-Digit UPC:

606480532361

Amperage:

10 Amp

Applications:

PROTECTION

Catalog Number:

NSYTRV42SF6

Color:

Black

Country of Origin:

Turkey

ERP_productname:

SQD NSYTRV42SF6 FUSE HOLDER

Family Brand Name:

Schneider Electric

Heights:

60.5 mm

Length:

79 mm

Material:

Polyamide

Mounting Type:

Clip-On

Size:

10.2 MM,60.5 MM,79 MM

Sub Brand:

LINERGY,TRV

Tc Connection:

1 X SCREW TERMINAL UPSTREAM-1 X SCREW TERMINAL DOWNSTREAM

Type:

SPACIAL ENCLOSURES,FUSED DISCONNECT,TERMINAL BLOCK

Voltage:

500 Volt

Widths:

10.2 mm

Wire Size:

0.2-4 MMA., FLEXIBLE WITHOUT CABLE END-0.2-4 MMA., FLEXIBLE WITH CABLE END-0.5-16 MMA., SOLID WITH CABLE END,16 MMA.

SoneparProductId:

SKU_US_69989834

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements. Compatible Products: NSYTRAAB35; NSYTRAABV35; NSYTRAATM1; NSYTRAATP1; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
