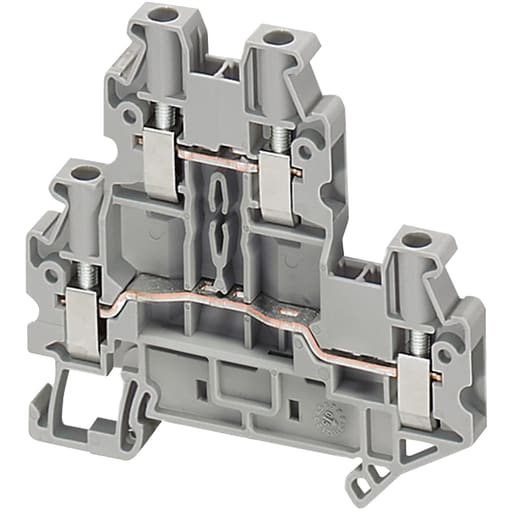

Square-D / Schneider - Square D NSYTRV44D 4 mm 4-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

CopyCopy
Square-D / Schneider - Square D NSYTRV44D 4 mm 4-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480532033

  • Amperage - 30 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

  • Catalog Number - NSYTRV44D

  • Color - Gray

Packaging

  • 1 ea

EAN

03606480532030

Part #

141585

Catalog #

NSYTRV44D

Commercial reference

NSYTRV44D

12-Digit UPC:

606480532033

Amperage:

30 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

Catalog Number:

NSYTRV44D

Color:

Gray

Conductor Size:

0.01 in. (4 mm.)

Country of Origin:

Germany

ERP_productname:

SQD NSYTRV44D SCREW TERMINAL, 2 LEVEL, 4PTS, 4MM GREY

Family Brand Name:

Schneider Electric

Heights:

65 mm

Length:

69.9 mm

Material:

Chromium-nickel Steel,Copper Alloy,Polyamide

Mounting Type:

Clip-On

Size:

2.56 in

Sub Brand:

TRV;Linergy

Tc Connection:

1 X SCREW TERMINAL UPSTREAM M3)-1 X SCREW TERMINAL DOWNSTREAM M3)

Type:

Spacial enclosures;Terminal block;Passthrough

Voltage:

440 Volt

Widths:

6.2 mm

Wire Size:

0.01 in. (4 mm.)

SoneparProductId:

SKU_US_26885468

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 800V conforming to EN/IEC 60947-7-1 and 440V conforming to ATEX Exe II Ex II 2 GD. The rated current is 30A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 25.5A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRAB610; NSYTRV44DBL; NSYTRAABV35; NSYTRAB620; NSYTRV44DPE; NSYTRAB630; NSYTRACE24; NSYTRAB640; NSYTRACEP24; NSYTRAB650; NSYTRAPE24; NSYTRAL42; NSYTRAL43; NSYTRAB680; NSYTRAL44; NSYTRAL45; NSYTRAL410; NSYTRAB61100; NSYTRAL420; NSYTRAB6L1N; NSYTRALV24; NSYTRAATM1; NSYTRABPV6; NSYTRAATP1; NSYTRAFT; NSYTRACS4; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
