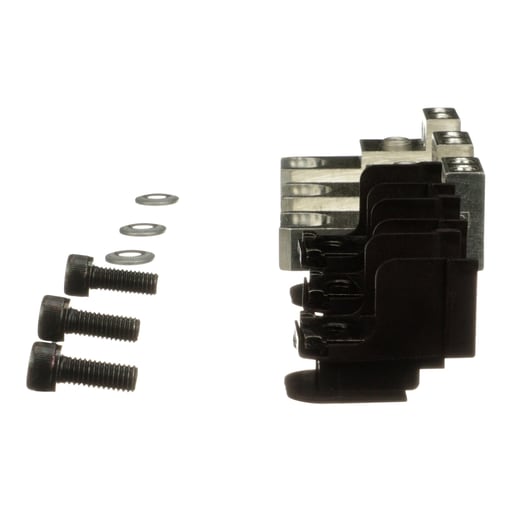

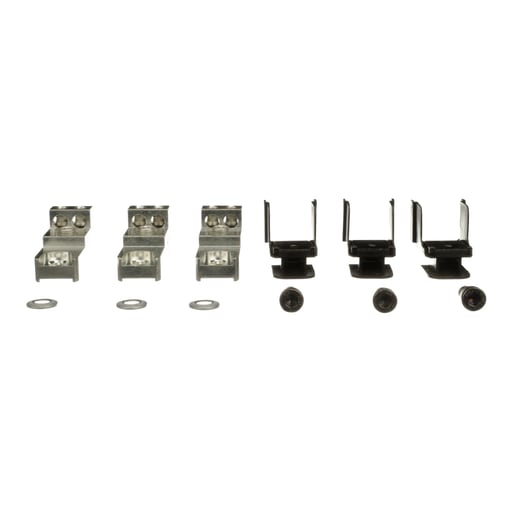

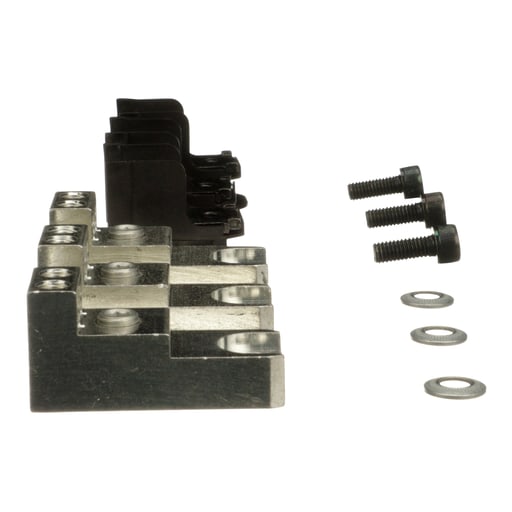

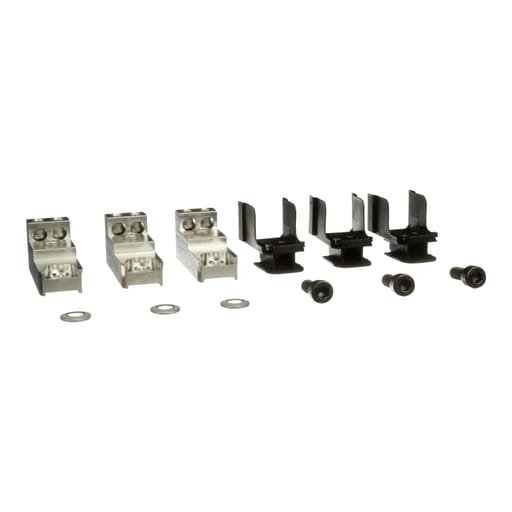

Square-D / Schneider - Square D PDC3JD20 3-Pack Circuit Breaker Power Distribution Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901570950

  • Amperage - 250 Amp

  • Applications - JG;JD;JJ;JL

  • Catalog Number - PDC3JD20

  • Circuit Breaker Type - JD,JG,JJ,JL

Packaging

  • 1 ea

EAN

00785901570950

Part #

201439

Catalog #

PDC3JD20

Commercial reference

PDC3JD20

12-Digit UPC:

785901570950

Amperage:

250 Amp

Applications:

JG;JD;JJ;JL

Catalog Number:

PDC3JD20

Circuit Breaker Type:

JD,JG,JJ,JL

Country of Origin:

USA

ERP_productname:

SQD PDC3JD20 CB POWER DISTRIBUTION CONNECTOR (3)

Family Brand Name:

Square D

Sub Brand:

POWERPACT

Trip Type:

NA

Type:

Power distribution connector

SoneparProductId:

SKU_US_26783016

PowerPacT J-Frame accessory circuits exit the circuit breaker using one to three secondary disconnecting blocks (nine wires each). Circuit breaker connection wires for the options installed with trip unit exit through the automatic secondary disconnecting blocks. These are made up of A moving part connected to the circuit breaker through a support (one support per circuit breaker), A fixed part mounted on the plug-in base, equipped with connectors for wire up to 14 AWG (2.5 mm2). The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories Power Distribution Connectors The power distribution connectors (PDC) can be used for multiple load wire connections on one circuit breaker. Use in place of standard distribution blocks to save space and time. Field installable kit includes tin-plated aluminum lug, connectors, and required mounting hardware. For use on load end of circuit breaker only. For use in UL 508 Industrial Control applications. For use in UL 1995/CSA C22.2 No. 236 heating and cooling equipment. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: JDA36150; JDA36200; JDA36225; JDA36250; JDF36150; JDF36225UK; JDL26175; JDL26200; JDL26225; JDL26250; JDL36150; JDL36175; JDL36200; JDL36200C; JDL36225; JDL36225C; JDL36250; JDL36250C; JDL36250CU31X; JDL36250U31X; JGA36175; JGA36200; JGA36225; JGA36250U31X; JGF36175; JGF36200; JGF36250; JGL26200; JGL36000S25; JGL36150; JGL36175; JGL36200; JGL36200T; JGL36225; JGL36225C; JGL36250; JGL36250U31X; JGM36200; JGN36000S25; JGP36200; JGP36225C; JGP36250U31X; JJA36150; JJA36200; JJA36225; JJA36250; JJA36250U33X; JJL36150; JJL36175; JJL36200; JJL36225; JJL36250; JJL36250M75; JJL36250U31X; JJM36250; JLA36200; JLL36175; JLL36200; JLL36225; JLL36250M75; JLM36000S25; MGA36600; MGA36800; MGL26600; MGL36300; MGL36400; MGL36400LH; MGL36500; MGL36700; MGL36800; MJA36300; MJA36400; MJA36600; MJA36800; MJL36400; MJL36600; MJL36800; MJL36800SA; NJDF36175TW; NJDF36200TW; NJDF36225TW; NJDF36250TW; NJGF36175TW; NJGF36200TW; NJGF36250TW; NJJF36200TW; NJJF36225TW; NJJF36250TW; PGL36060CU31A; PGL36080CU31A; PJL36000S60
