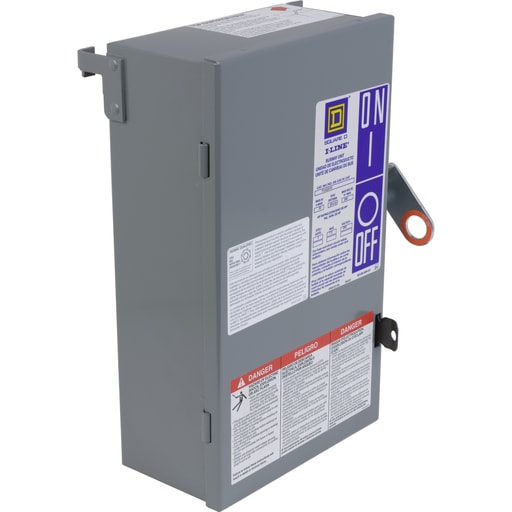

Square-D / Schneider - Square D PQ4210G 120/208 VAC 100 Amp 4-Pole 3-Phase 4-Wire Busway Fusible Plug-In Unit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901309840
Applications - 100 A
Catalog Number - PQ4210G
Country of Origin - Mexico
ERP_productname - SQD PQ4210G BUSWAY, I-LINE, FUSIBLE PLUG IN UNIT, 100A, 120/208V, 4 POLE, CLASS H FUSE
Packaging
1 ea
EAN
00785901309840
Part #
301404
Catalog #
PQ4210G
Commercial reference
PQ4210G
12-Digit UPC:
785901309840
Applications:
100 A
Catalog Number:
PQ4210G
Country of Origin:
Mexico
ERP_productname:
SQD PQ4210G BUSWAY, I-LINE, FUSIBLE PLUG IN UNIT, 100A, 120/208V, 4 POLE, CLASS H FUSE
Family Brand Name:
Square D
Number of Poles:
4 Pole
Number of Wires:
3 Wire
Sub Brand:
I-LINE II
Type:
Section
Voltage:
120 Volt
SoneparProductId:
SKU_US_26513661
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This fusible plug-in unit is 100A, 240VAC max, 4 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit uses H, K, J or R fuses. I-Line busway is UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HRK1020
