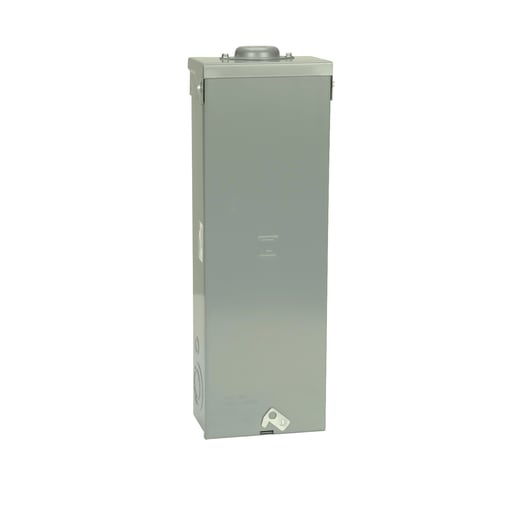

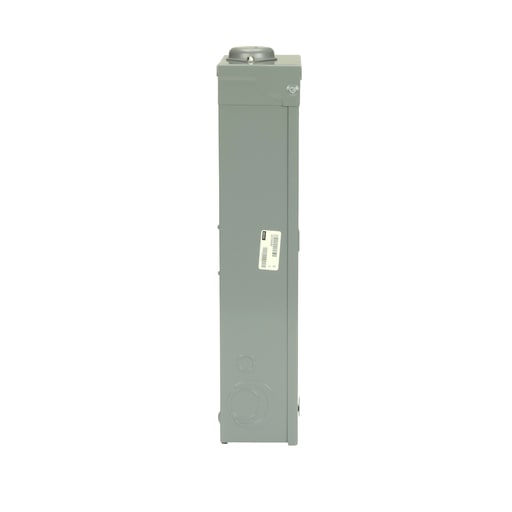

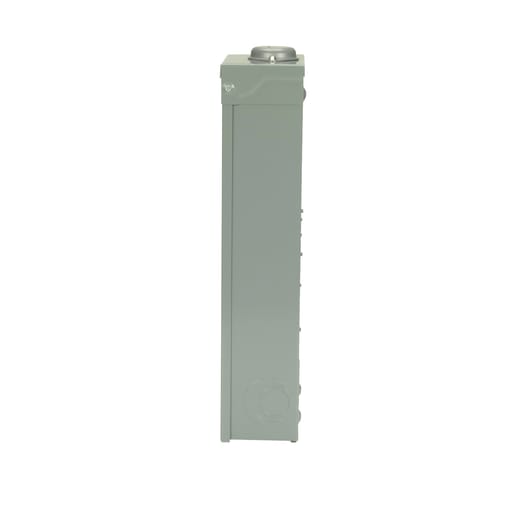

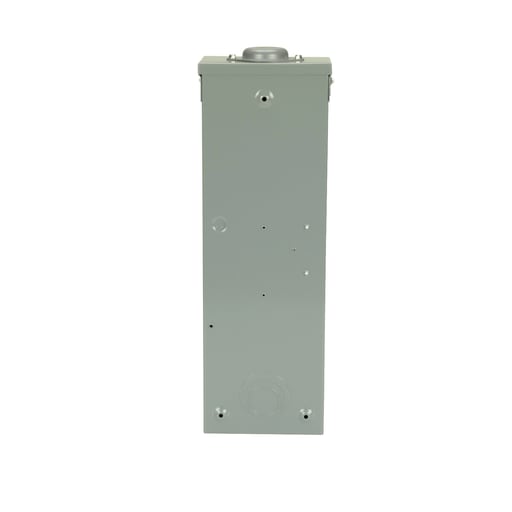

Square-D / Schneider - Square D Q22200NRB Circuit Breaker Enclosure 200A 240V NEMA-3R

The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The I-Line circuit breakers are specifically designed for use in I-Line panelboards and switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, Molded Case Circuit Breaker Enclosure, 2P, 3P, 100-200A, Type 3R, enclosure is made of steel. This enclosure complies to UL & CSA standards. The dimensions are 594 mm (H,) 194 mm (W), 121 mm (D). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: B075; B100; B125; B150; B200; B250; PKOGTA2; QBL22070; QDL22070; QGL22070; QJL22070; QBL22225; QDL22225; QGL22225; QJL22225
