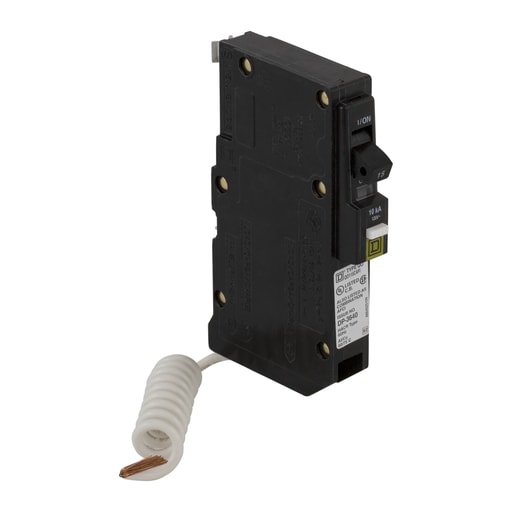

Square-D / Schneider - Square D QO115CAFI Arc-Fault Circuit Breaker 15A 120/240V 1P , Pigtail Neutral

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901438236

  • Amperage - 15 Amp

  • Applications - HACR rated

  • Catalog Number - QO115CAFI

  • Circuit Breaker Type - Combination ARC-fault

Packaging

  • 1 ea

EAN

00785901438236

Part #

189173

Catalog #

QO115CAFI

Commercial reference

QO115CAFI

12-Digit UPC:

785901438236

Amperage:

15 Amp

Applications:

HACR rated

Catalog Number:

QO115CAFI

Circuit Breaker Type:

Combination ARC-fault

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

15 Amp

Depths:

74 mm

ERP_productname:

SQD QO115CAFI COMBO ARC FAULT CIRCUIT BREAKER 120V 15A

Family Brand Name:

Square D

Heights:

121 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pigtail neutral;Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium NULL

SoneparProductId:

SKU_US_69894891

Square D™ QO™ and QOB Miniature Circuit Breakers, QO115CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QO1HT; QO1LO; QO24L70RB; QO2DTI; QOHPL; HLO1; QO1816M200FTRB; QO1PA; QO2DTIM; QO1PAF - Cross Sell Products: QO1816M200FTRB; QO1HT; QO24L70RB; QO1LO
