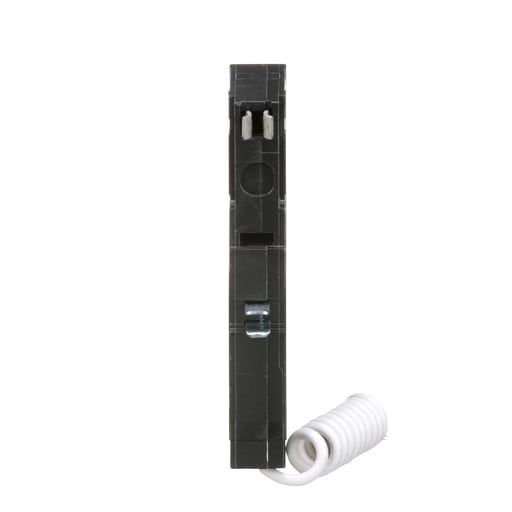

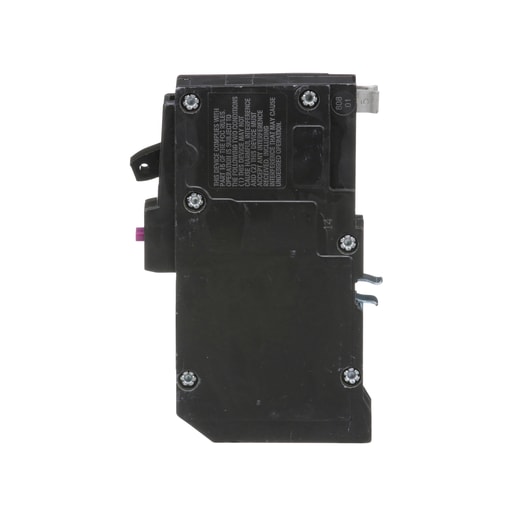

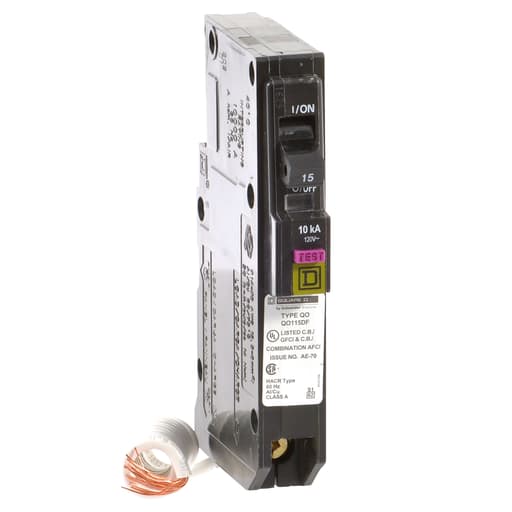

Square-D / Schneider - Square D QO115DF Combination Arc-Fault & Ground Fault Circuit Breaker (Pigtail Neutral), 15A 120V 1Ph 1Pole, 10kAIR

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901401605

  • Amperage - 15 Amp

  • Applications - Not rated

  • Catalog Number - QO115DF

  • Circuit Breaker Type - Combination ARC-fault And Ground Fault

Packaging

  • 1 ea

EAN

00785901401605

Part #

141909

Catalog #

QO115DF

Commercial reference

QO115DF

12-Digit UPC:

785901401605

Amperage:

15 Amp

Applications:

Not rated

Catalog Number:

QO115DF

Circuit Breaker Type:

Combination ARC-fault And Ground Fault

Conductor Size:

14-8 AWG

Country of Origin:

Mexico

Current:

15 Amp

Depths:

74 mm

ERP_productname:

SQD QO115DF DUAL FUNCTION ARC FAULT/GROUND FAULT BREAKER 120V 15A

Family Brand Name:

Square D

Frame:

QO

Heights:

121 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pigtail neutral;Pressure plate

Trip Type:

THERMAL-MAGNETIC

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

19 mm

SoneparProductId:

SKU_US_69913740

Square D™ QO™ and QOB Miniature Circuit Breakers, QO115DF, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. has dual funcion circuit breaker application. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: CQO112L100PGC; CQO124M100PC; CQO132M100PC; QC816F100CH; QC816F125C; QC816F150C; QC816F150S; QC816F200C; QC816F200CH; QC816F200S; QO124L125PGRB; QO130L200PWG; QO130M150P; QO142M200PQ; QO142M200PRB; QO148L125GF; QO148L125GRB; QO148L125GS; QO154M200PC; QO1612M125FTRB; QO1HT; QO1LO; QO2100BNF; QO24L70RB; QO2DTI; QO320ML1; QO342L225G; QO342L225GRB; QO342ML2; QO342MQ150; QO342MQ200; QO342MQ200RB; QO342MQ225; QO342MQ225RB; QO35FM30TTS; QO403L60NS; QO4L100S; QO612L100RBCU; QO612L100S; QO612L100TRB; QO6L100S; QO816L100F; QO8L100S; QOHPL; QOM22225NRB; QOM22225NS; QOMB1100; HLO1; QO1816M200FTRB; QO1PA; QO2DTIM; QO1PAF
