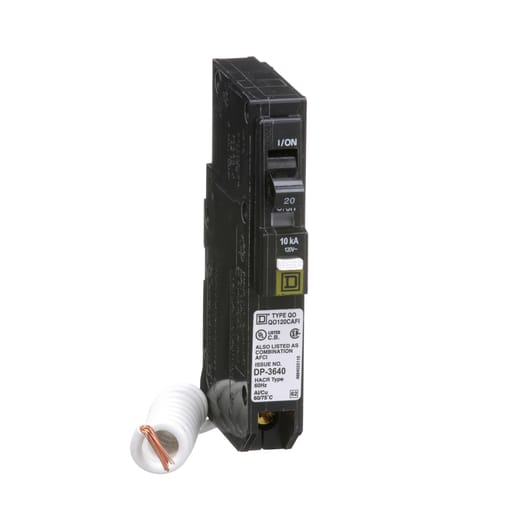

Square-D / Schneider - Square D QO120CAFI Arc-Fault Miniature Circuit Breaker 20A 120V 1Ph 1P, Pigtail Neutral

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901438359

  • Amperage - 20 Amp

  • Applications - HACR rated

  • Catalog Number - QO120CAFI

  • Circuit Breaker Type - Combination ARC-fault

Packaging

  • 1 ea

EAN

00785901438359

Part #

187516

Catalog #

QO120CAFI

Commercial reference

QO120CAFI

12-Digit UPC:

785901438359

Amperage:

20 Amp

Applications:

HACR rated

Catalog Number:

QO120CAFI

Circuit Breaker Type:

Combination ARC-fault

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

20 Amp

Depths:

74 mm

ERP_productname:

SQD QO120CAFI COMBO ARC FAULT CIRCUIT BREAKER 120V 20A

Family Brand Name:

Square D

Heights:

121 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pigtail neutral;Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_69894874

Square D™ QO™ and QOB Miniature Circuit Breakers, QO120CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QO1HT; QO1LO; QO24L70RB; QO2DTI; QOHPL; HLO1; QO1816M200FTRB; QO1PA; QO2DTIM; QO1PAF
