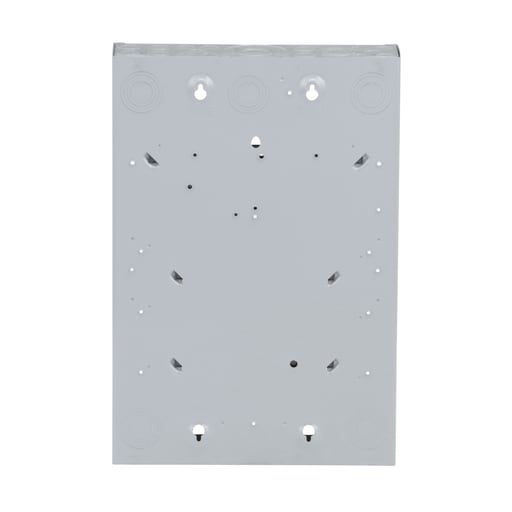

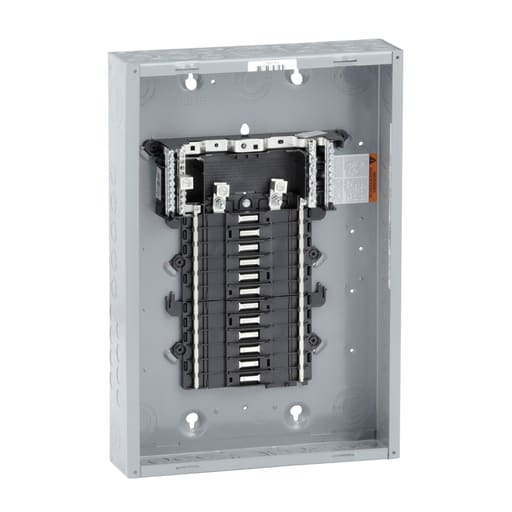

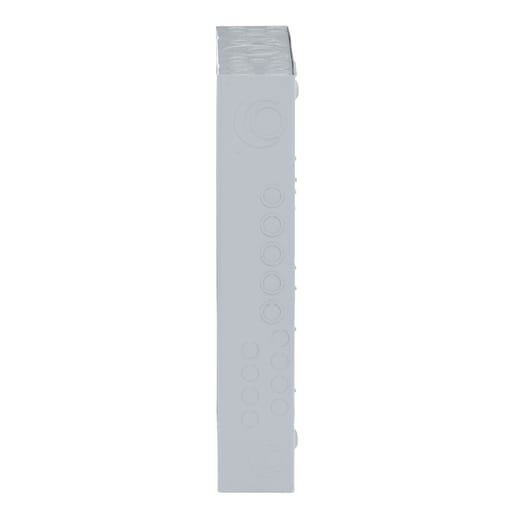

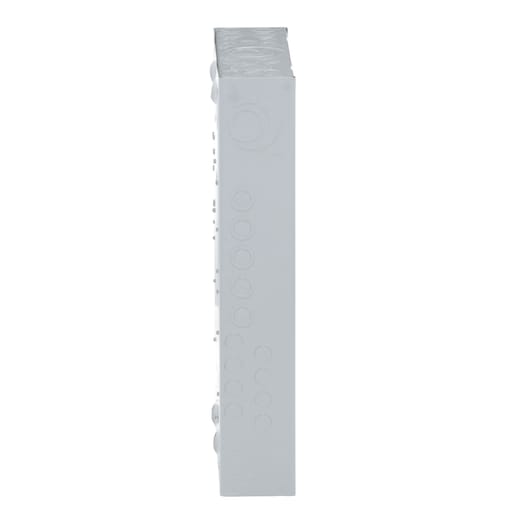

Square-D / Schneider - Square D QO124L125PG Load Center QO 125A 240V 1Ph 24SP NEMA-1 Plug-On Neutral

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901133865

  • Amperage - 125 Amp

  • Catalog Number - QO124L125PG

  • Circuit Breaker Type - QOM1 MAIN FRAME

  • Conductor Size - 6-2/0 AWG

Packaging

  • 1 ea

EAN

00785901133865

Part #

217669

Catalog #

QO124L125PG

Commercial reference

QO124L125PG

12-Digit UPC:

785901133865

Amperage:

125 Amp

Catalog Number:

QO124L125PG

Circuit Breaker Type:

QOM1 MAIN FRAME

Conductor Size:

6-2/0 AWG

Country of Origin:

Mexico

Current:

125 Amp

ERP_productname:

SQD QO124L125PG QO PLUG-ON NUET LOAD CENTER N 1PH ML 240V 125A 24SP

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

531 mm

Interrupt Rating:

65 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

24

Number of Phases:

1,3 Phase

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Sub Brand:

QO

Type:

MAIN LUG CONVERTIBLE LOAD CENTER

Voltage:

120/240 Volt

Widths:

362 mm

Wire Size:

AWG 6...AWG 2/0 aluminium/copper

SoneparProductId:

SKU_US_69878235

QO® Circuit Breaker Load Centers, QO124L125PG, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK15GTAL; PK4DTIM4LAL; PSDS; QO115PCAFIC; QO120VHPCAFI; QO2175SB; QOC24UF; QOFPCP; QO120PDFC; QO250PSPD; QOC24UFW; HEPD25; QO120PCAFIC; QOC24US; HEPD50; QOC24UC; QOM125VHCP; HEPD80; QO115PDFC; HEPD25MKF; HEPD58MKF
