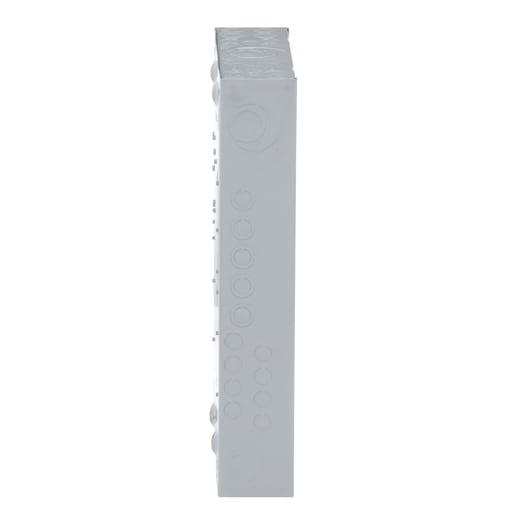

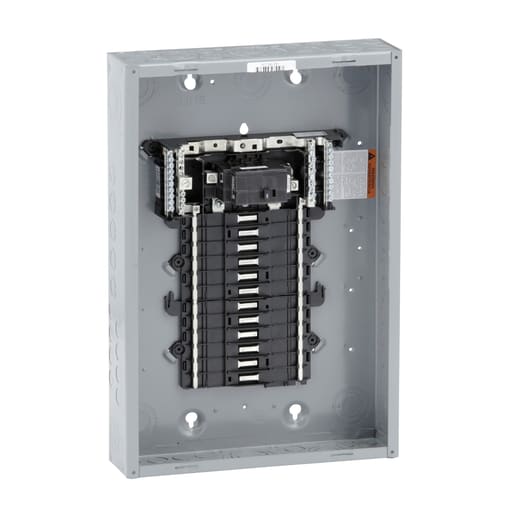

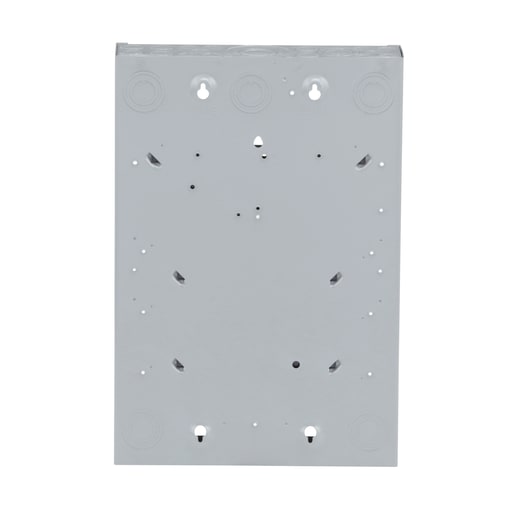

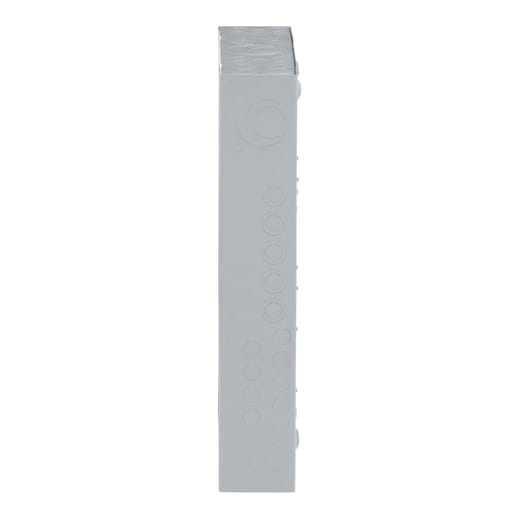

Square-D / Schneider - Square D QO124M100P 100A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 24 Spaces / 34 Circuits, NEMA-1, Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901228769

  • Amperage - 100 Amp

  • Applications - RESIDENTIAL

  • Catalog Number - QO124M100P

  • Circuit Breaker Type - QO

Packaging

  • 1 ea

EAN

00785901228769

Part #

215948

Catalog #

QO124M100P

Commercial reference

QO124M100P

12-Digit UPC:

785901228769

Amperage:

100 Amp

Applications:

RESIDENTIAL

Catalog Number:

QO124M100P

Circuit Breaker Type:

QO

Conductor Size:

6-2/0 AWG

Country of Origin:

USA

Current:

100 Amp

ERP_productname:

SQD QO124M100P QO PLUG-ON NEUTRAL LOADCENTER N1 1PH M 240V 100A 24

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

531 mm

Interrupt Rating:

22 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

24

Number of Phases:

1,3 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120/240 Volt

Widths:

362 mm

Wire Size:

AWG 6...AWG 2/0 aluminium/copper

SoneparProductId:

SKU_US_69887038

QO® Circuit Breaker Load Centers, QO124M100P, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK15GTA; QO115PCAFIC; QO2175SB; QOC24UF; QOFPCP; QOM70VH; QOM80VH; QOM90VH; PKQGA; QO120PDFC; QO250PSPD; QOC24US; HEPD25; QO120PCAFIC; QOC24UC; HEPD50; QO115PDFC; QOC24UFW; HEPD80; HEPD25MKF; HEPD58MKF
