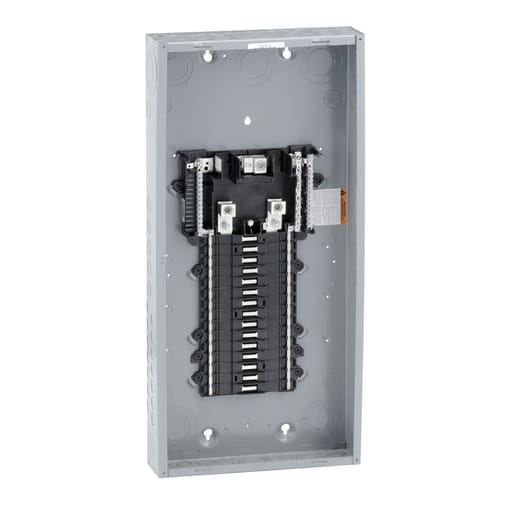

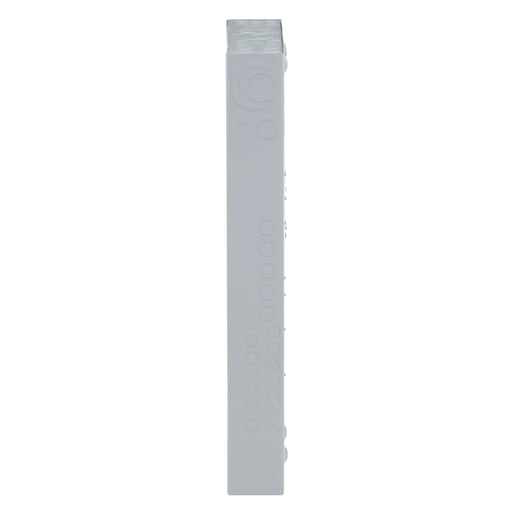

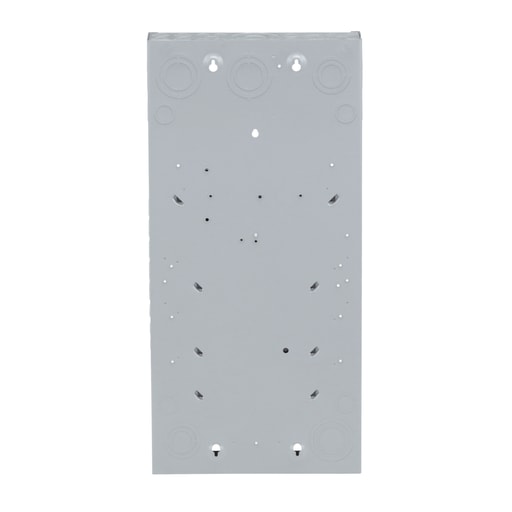

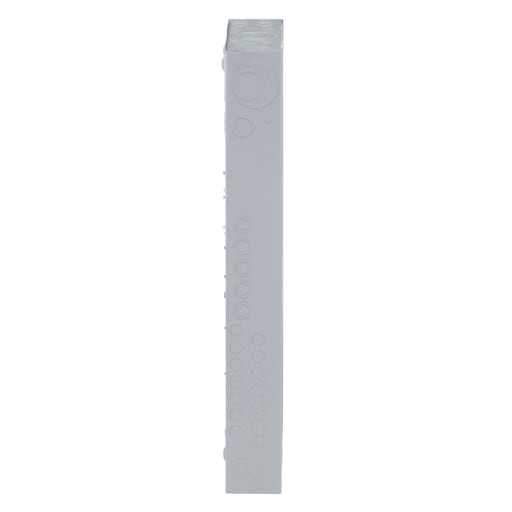

Square-D / Schneider - Square D QO130L200PG Load Center QO 200A 120/240V 1Ph 30SP NEMA-1 , Plug-On Neutral

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901219248

  • Amperage - 200 Amp

  • Catalog Number - QO130L200PG

  • Conductor Size - 6 AWG-250 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901219248

Part #

217893

Catalog #

QO130L200PG

Commercial reference

QO130L200PG

12-Digit UPC:

785901219248

Amperage:

200 Amp

Catalog Number:

QO130L200PG

Conductor Size:

6 AWG-250 kcmil

Country of Origin:

USA

Current:

200 Amp

ERP_productname:

SQD QO130L200PG PLUG-ON NEUT LOAD CENTER N1 PH ML 240V 200A 30

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

758 mm

Interrupt Rating:

65 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

40

Number of Phases:

1,3 Phase

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120/240 Volt

Widths:

362 mm

Wire Size:

AWG 6...250 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_69914828

QO® Circuit Breaker Load Centers, QO130L200PG, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: KITWISER2PLUGCO_TO; KIT_WISER2PLUG_TO; PK23GTAL; QH230; QHB115; QHB215; QO115EPD1200; QO115VHGFI; QO120PDFC; QO120PL5393; QO120PLILC; QO120VHPCAFI; QO130PL5393; QO130VHGFI; QO1530; QO2150VH; QO2155237; QO2175; QO2175SB; QO2200VH; QO220PL; QO2255219; QO225VH; QO230PL; QO230PLILC; QO260VH1021; QO270VH; QO315GFI; QO315VH; QO3201021; QO320HID; QO325VH; QO3405238; QO3605273; QO3701021; QO370VH; QO3801021; QO3805273; QO380VH; QOC30UF; QOFPCP; QOH2110; QOH280; QO115PCAFIC; QO250PSPD; QOC30US; HEPD25; QO120PCAFIC; QOC30UC; HEPD50; QO115PDFC; QOC30UFW; HEPD80; QO2125CP; QOCMF30UC; HEPD25MKF; QOCMF30UCW; HEPD58MKF
