Square-D / Schneider - Square D QO130M150P 150A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-1, Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901708612

  • Amperage - 150 Amp

  • Catalog Number - QO130M150P

  • Conductor Size - 4 AWG-250 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901708612

Part #

227956

Catalog #

QO130M150P

Commercial reference

QO130M150P

12-Digit UPC:

785901708612

Amperage:

150 Amp

Catalog Number:

QO130M150P

Conductor Size:

4 AWG-250 kcmil

Country of Origin:

USA

Current:

150 Amp

ERP_productname:

SQD QO130M150P PLUG-ON NEUT INDR 150A MB 30CIR LOAD CENTER

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

758 mm

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

40

Number of Phases:

1,3 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Widths:

362 mm

Wire Size:

AWG 4...250 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_69071845

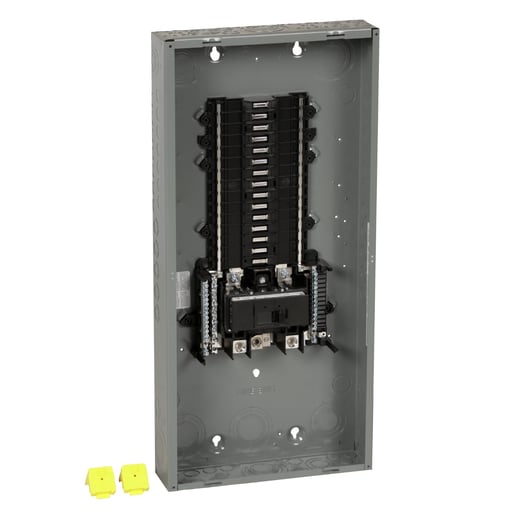

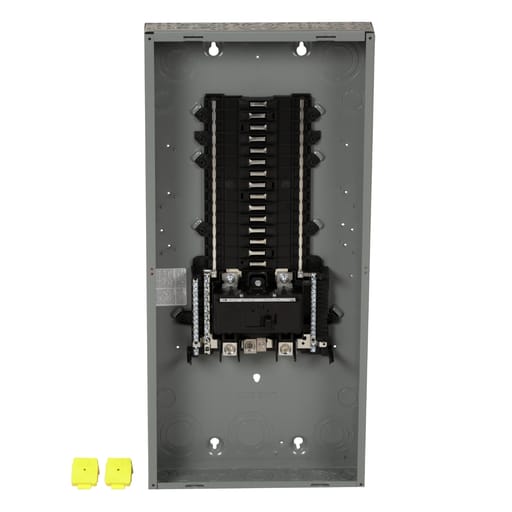

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 150 A and 1 phase. This system provides 30 spaces in a NEMA 1 enclosure. Load center is plug on neutral ready. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LK70AN; QO120; QO2175SB; QOC30UF; QOFP; QOM2150VH; PK2MB; QO115; QO250PSPD; QOC30US; HEPD25; PK6FL; QO230; QOC30UC; HEPD50; PK15GTA; QO115CAFI; QOC30UFW; HEPD80; QO220; QOCMF30UC; HEPD25MKF; QO120DF; QOCMF30UCW; HEPD58MKF; QO120CAFI; QO240; QO250; QO260; QO120GFI; QO215; QO225; QO115DF; QO130
