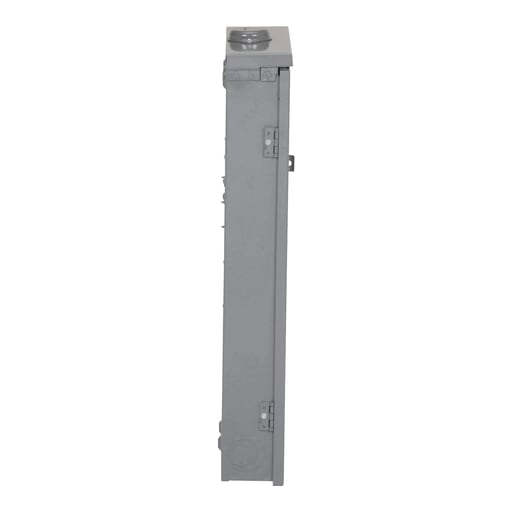

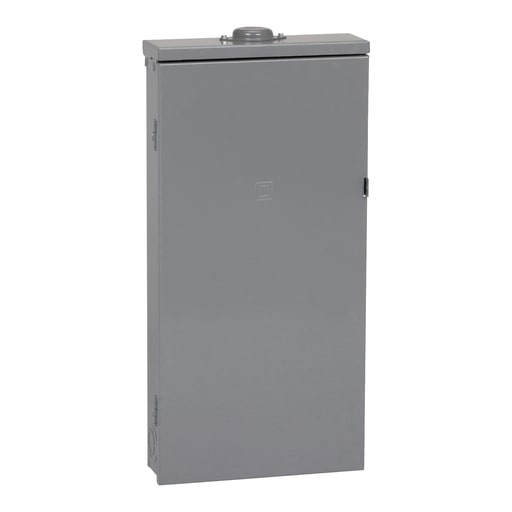

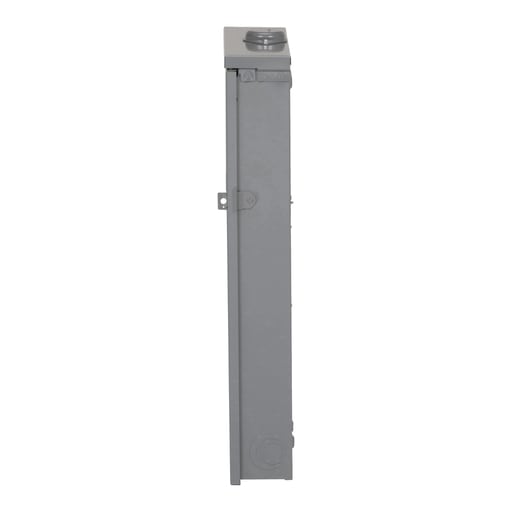

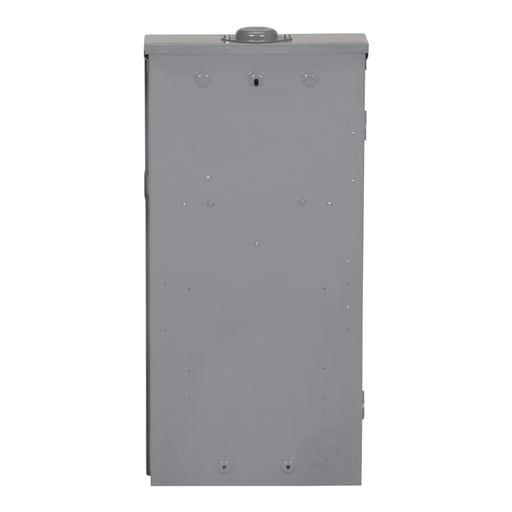

Square-D / Schneider - Square D QO130M150PRB 150A 120/240V 1ø3W Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-3R, Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901960225

  • Amperage - 150 Amp

  • Catalog Number - QO130M150PRB

  • Conductor Size - 4 AWG-250 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901960225

Part #

228254

Catalog #

QO130M150PRB

Commercial reference

QO130M150PRB

12-Digit UPC:

785901960225

Amperage:

150 Amp

Catalog Number:

QO130M150PRB

Conductor Size:

4 AWG-250 kcmil

Country of Origin:

USA

Current:

150 Amp

ERP_productname:

SQD QO130M150PRB QO PLUG-ON NEUT OUTD 150A MB 30CIR

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure NULL

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

758 mm

Interrupt Rating:

22 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

3R

Number of Circuits:

40

Number of Phases:

1,3 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120/240 VAC

Widths:

375 mm

SoneparProductId:

SKU_US_28973795

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 150 A and 1 phase. This system provides 30 spaces in a NEMA 3R enclosure and is hub ready. Load center is plug on neutral ready. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK15GTA; QO2175SB; QO250PSPD; HEPD25; HEPD50; HEPD80; HEPD25MKF; HEPD58MKF
