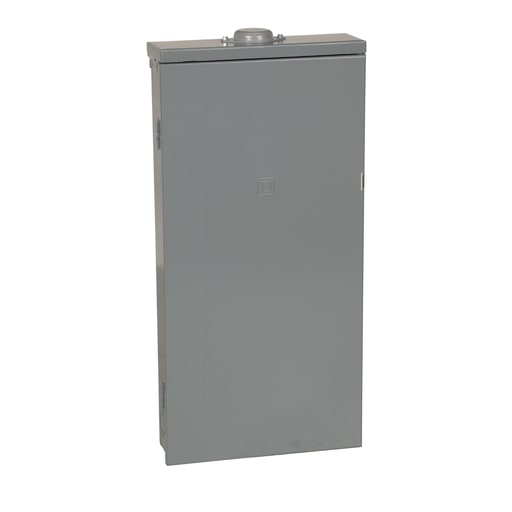

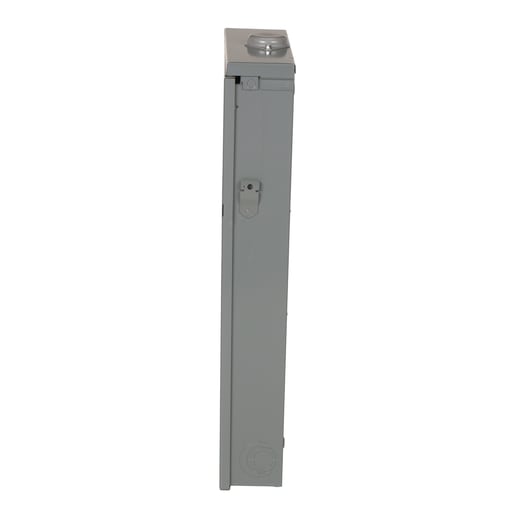

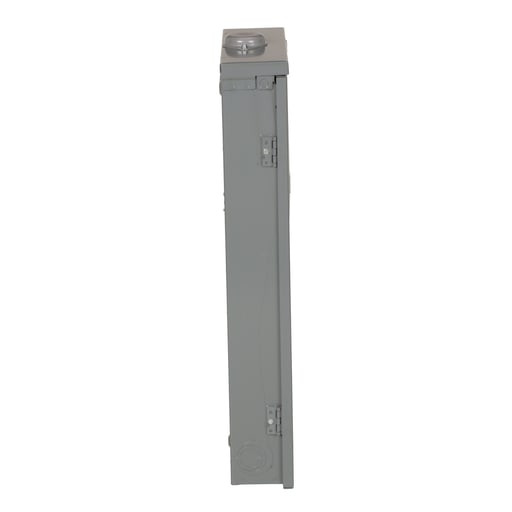

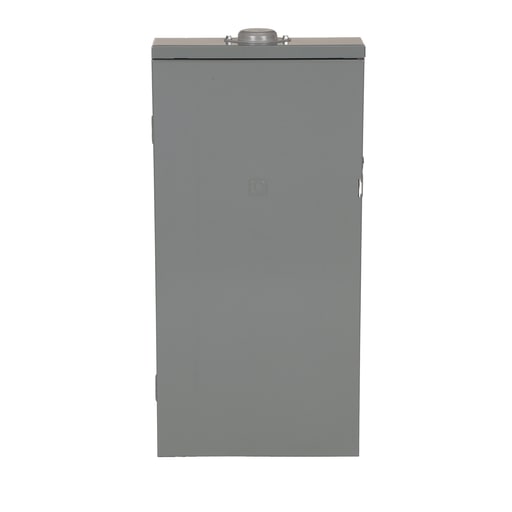

Square-D / Schneider - Square D QO130M200PRB 200A 120/240V 1ø3W Convertible Main Breaker Load Center, Plug-On Neutral, 30 Spaces / 40 Circuits, NEMA-3R, Gray

12-Digit UPC:

785901229001

Amperage:

200 Amp

Catalog Number:

QO130M200PRB

Conductor Size:

4 AWG-250 kcmil

Country of Origin:

USA

Current:

200 Amp

ERP_productname:

SQD QO130M200PRB QO PLUG-ON NEUT LC N3R 1PH MB 240V 200A

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

758 mm

Interrupt Rating:

22 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

3R

Number of Circuits:

40

Number of Phases:

1,3 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120/240 VAC

Widths:

375 mm

Wire Size:

AWG 4...250 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_70008278
