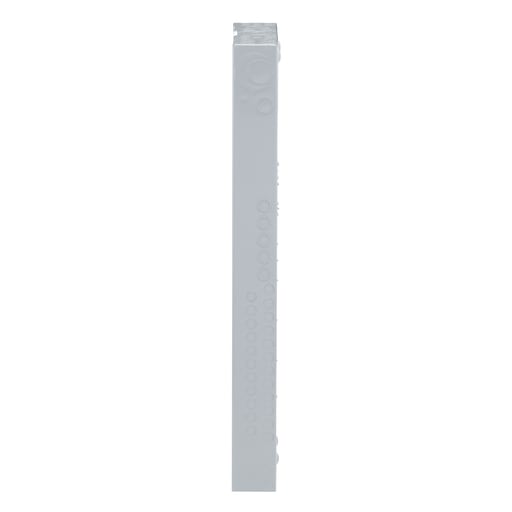

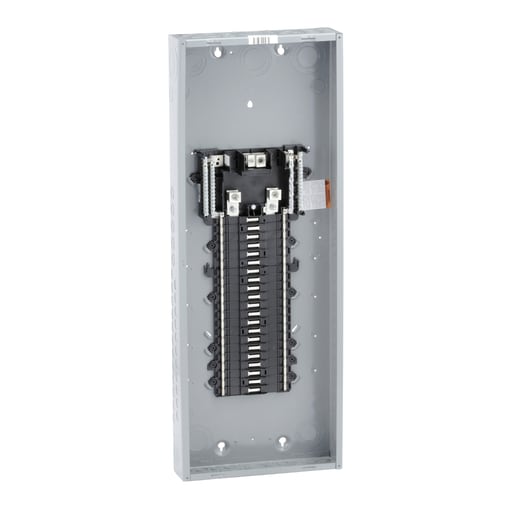

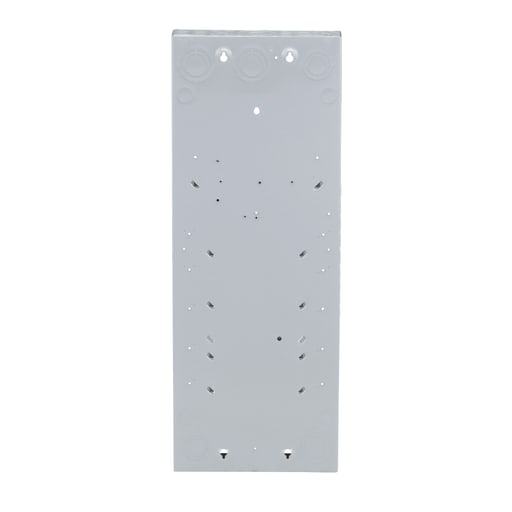

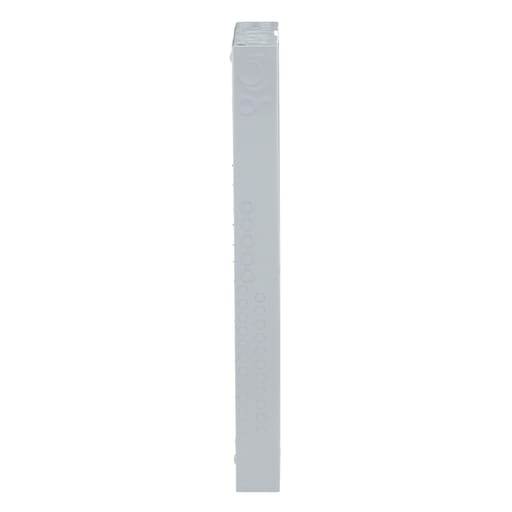

Square-D / Schneider - Square D QO142L225PG Load Center QO 225A 120/240V 1Ph 42SP NEMA-1 , Plug-On Neutral

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901267430

  • Amperage - 225 Amp

  • Catalog Number - QO142L225PG

  • Circuit Breaker Type - QOM2

  • Conductor Size - 6 AWG-300 kcmil

Packaging

  • 1 ea

EAN

00785901267430

Part #

217897

Catalog #

QO142L225PG

Commercial reference

QO142L225PG

12-Digit UPC:

785901267430

Amperage:

225 Amp

Catalog Number:

QO142L225PG

Circuit Breaker Type:

QOM2

Conductor Size:

6 AWG-300 kcmil

Country of Origin:

USA

Current:

225 Amp

ERP_productname:

SQD QO142L225PG QO PLUG-ON NEUT LC N1 1PH ML 240V 225A

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

965 mm

Interrupt Rating:

65 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

42

Number of Phases:

1,3 Phase

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Sub Brand:

QO

Type:

MAIN BREAKER CONVERTIBLE LOAD CENTER

Voltage:

120/240 VAC

Widths:

362 mm

Wire Size:

AWG 6...300 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_69891246

QO® Circuit Breaker Load Centers, QO142L225PG, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: KITWISER2PLUGCO_TO; KIT_WISER2PLUG_TO; PK23GTAL; PSDS; QH230; QHB115; QHB215; QO115EPD1200; QO115VHGFI; QO120PDFC; QO120PL5393; QO120PLILC; QO120VHPCAFI; QO130PL5393; QO130VHGFI; QO1530; QO2150VH; QO2155237; QO2175; QO2175SB; QO2200VH; QO220PL; QO2255219; QO225VH; QO230PL; QO230PLILC; QO260VH1021; QO270VH; QO315GFI; QO315VH; QO3201021; QO320HID; QO325VH; QO3405238; QO3605273; QO3701021; QO370VH; QO3801021; QO3805273; QO380VH; QOC42UF; QOFPCP; QOH2110; QOH280; QO115PCAFIC; QO250PSPD; QOC42US; HEPD25; QO120PCAFIC; QOC42UC; HEPD50; QO115PDFC; QOC42UFW; HEPD80; QO2125CP; QOCMF42UC; HEPD25MKF; QOCMF42UCW; HEPD58MKF
