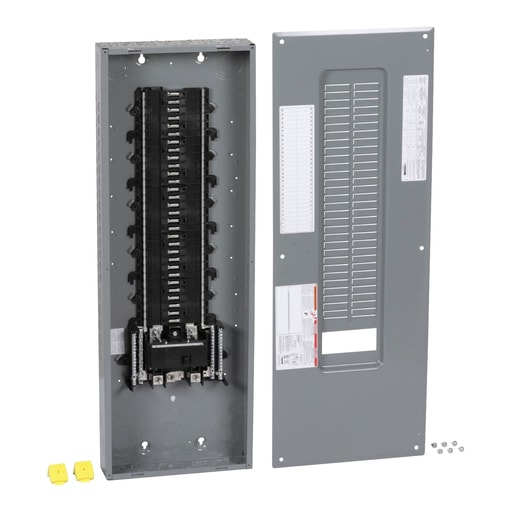

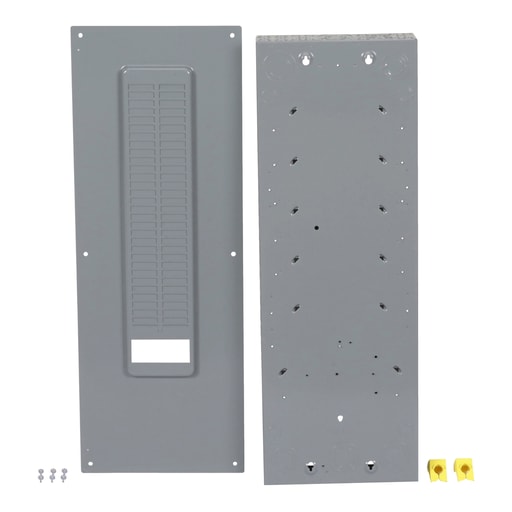

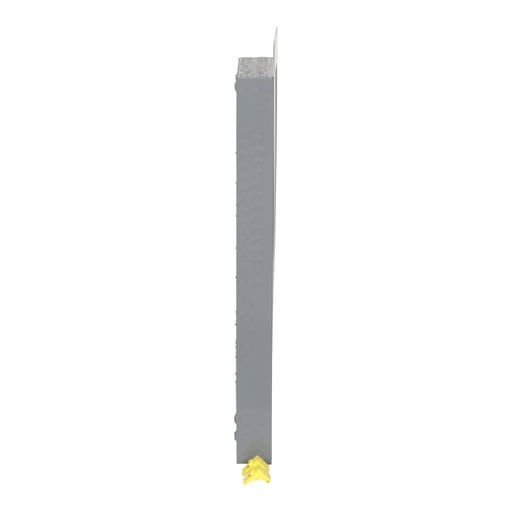

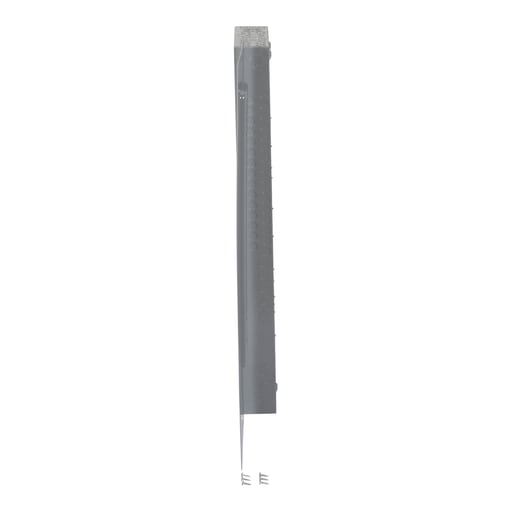

Square-D / Schneider - Square D QO160M200PC 200A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 60 Spaces / 72 Circuits, NEMA-1, Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901447528

  • Amperage - 200 Amp

  • Catalog Number - QO160M200PC

  • Conductor Size - 4 AWG-250 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901447528

Part #

218512

Catalog #

QO160M200PC

Commercial reference

QO160M200PC

12-Digit UPC:

785901447528

Amperage:

200 Amp

Catalog Number:

QO160M200PC

Conductor Size:

4 AWG-250 kcmil

Country of Origin:

USA

Current:

200 Amp

ERP_productname:

SQD QO160M200PC QO PLUG-ON NEUT LC N1 1PH MB 240V 200A W/COVER

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

1096 mm

Interrupt Rating:

22 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

72

Number of Phases:

1,3 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

120/240 Volt

Widths:

362 mm

Wire Size:

AWG 4...250 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_69891232

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as combination covers which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 200 A and 1 phase. This system provides 60 spaces in a NEMA 1 enclosure and is plug on neutral ready. A combination cover is supplied with this load center. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK23GTA; PK27GTA; QO115PCAFIC; QO2175SB; QOCDK60; QOFP; QO120PDFC; QO250PSPD; QOCGK2C; HEPD25; QO120PCAFIC; QOCMF60UC; HEPD50; QO115PDFC; QOCMF60UCW; HEPD80; HEPD25MKF; HEPD58MKF; S106
