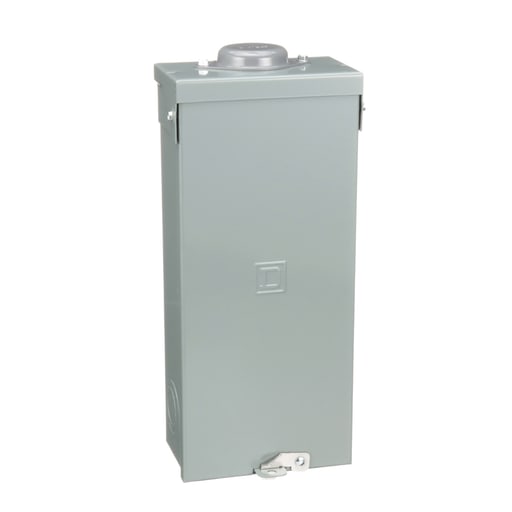

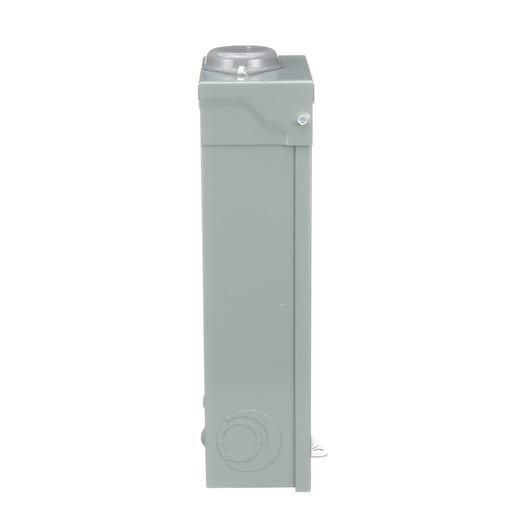

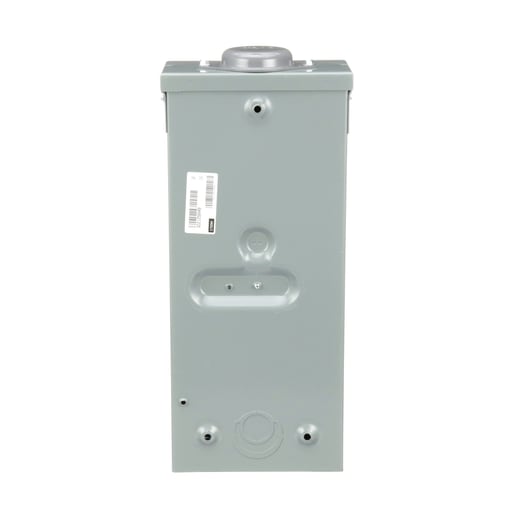

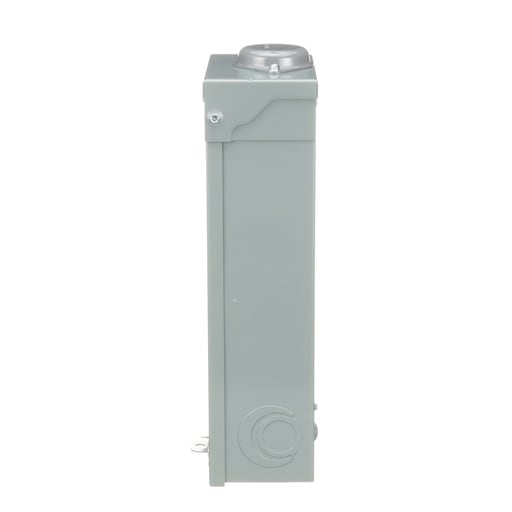

Square-D / Schneider - Square D QO2125BNRB 6.92 x 4.12 x 16.18 Inch 125 Amp Steel NEMA 3R Surface Mount Circuit Breaker Enclosure

Essential specifications

12-Digit UPC - 785901051800
Amperage - 125 Amp
Applications - QO
Catalog Number - QO2125BNRB
Conductor Size - 12-2/0 AWG (AL)/14-2/0 AWG (CU)

Packaging

1 ea

EAN

00785901051800

Part #

116669

Catalog #

QO2125BNRB

Commercial reference

QO2125BNRB

12-Digit UPC:

785901051800

Amperage:

125 Amp

Applications:

Catalog Number:

QO2125BNRB

Conductor Size:

12-2/0 AWG (AL)/14-2/0 AWG (CU)

Country of Origin:

Mexico

Current:

125 Amp

Depths:

4 Inch

ERP_productname:

SQD QO2125BNRB 125A LD-CNTR

Enclosure:

Enclosure Material:

Steel

Enclosure Type:

Enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

411 mm

Interrupt Rating:

22 kAIC

Length:

4 Inch

Material:

Copper

NEMA Size:

Number of Circuits:

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Sub Brand:

Tc Connection:

AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS

Type:

Weatherproof enclosure;Enclosure

Voltage:

120/240 VAC

Widths:

176 mm

Wire Size:

AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper NULL

SoneparProductId:

SKU_US_69894955

QO and QOB Circuit Breakers have one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. These enclosures are rated for indoor or outdoor use, providing flexible applications. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QO2125CP; QO260CP; QO270CP
