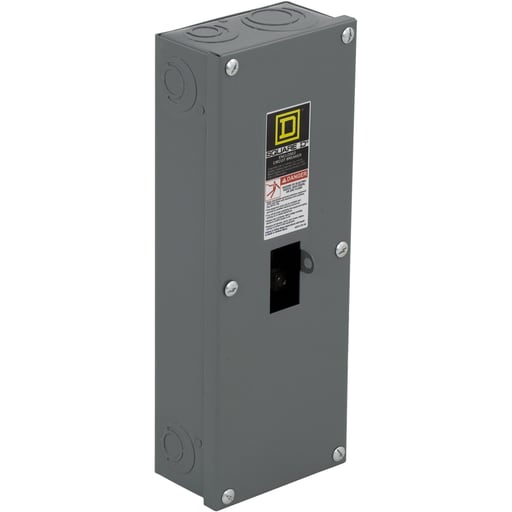

Square-D / Schneider - Square D QO2125BNS 2-Pole 125 Amp 120/240 Volt Plug-On Thermal Magnetic Enclosure Miniature Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901051794
Amperage - 125 Amp
Applications - QO
Catalog Number - QO2125BNS
Conductor Size - 12-2/0 AWG (AL)/14-2/0 AWG (CU)
Packaging
1 ea
EAN
00785901051794
Part #
116696
Catalog #
QO2125BNS
Commercial reference
QO2125BNS
12-Digit UPC:
785901051794
Amperage:
125 Amp
Applications:
QO
Catalog Number:
QO2125BNS
Conductor Size:
12-2/0 AWG (AL)/14-2/0 AWG (CU)
Country of Origin:
Mexico
Current:
125 Amp
Depths:
3.4 Inch
ERP_productname:
SQD QO2125BNS 125A LD-CNTR
Enclosure:
1
Enclosure Material:
Steel
Enclosure Type:
Enclosure
Family Brand Name:
Square D
Finish:
Baked Enamel
Heights:
409 mm
Interrupt Rating:
22 kAIC
Length:
3.4 Inch
Material:
Copper
NEMA Size:
1
Number of Circuits:
2
Number of Phases:
1 Phase
Short Circuit Current:
22 kA
Sub Brand:
QO
Tc Connection:
AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS
Type:
Enclosure;Enclosure
Voltage:
120/240 VAC
Widths:
149 mm
Wire Size:
AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
SoneparProductId:
SKU_US_26780422
