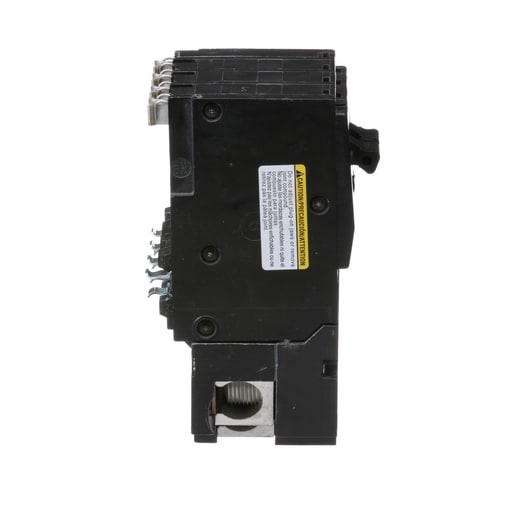

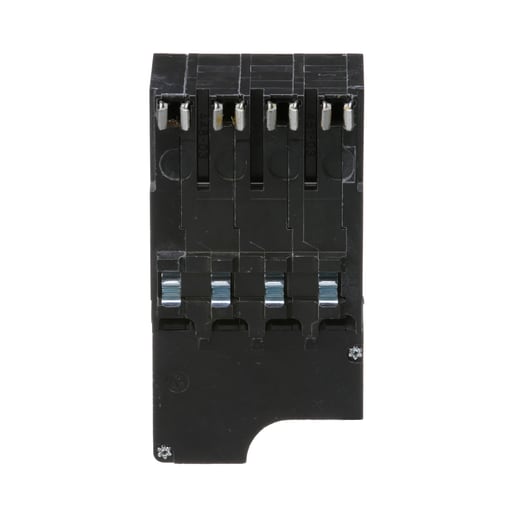

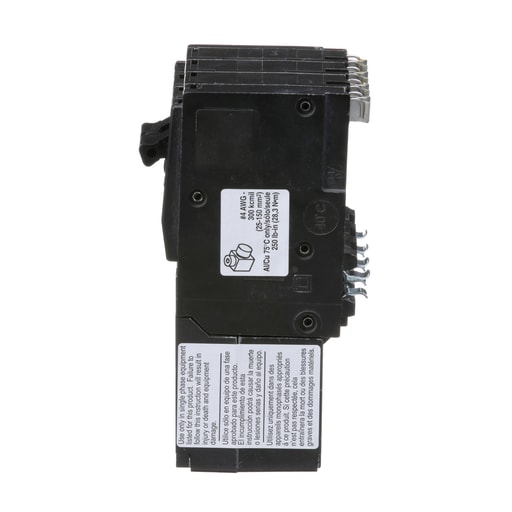

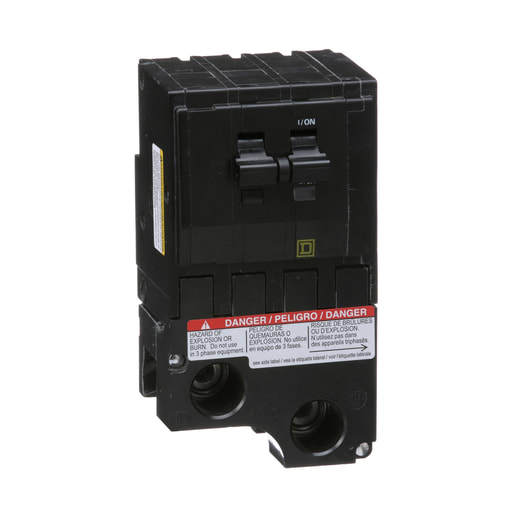

Square-D / Schneider - Square D QO2150VH Miniature Circuit Breaker 150A 120/240V 2P 1Ph , Plug-On

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The box lugs will accept one 1 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.72 inches, a width of 3.00 inches and a depth of 4.90 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HLO1; QO142M200P; QO142L225PG; QO3HT; QO1HPL; QO1PL; QO342MQ200; QO2DTI; QO1816M200FTRB; QO2DTIM; QO130L200PG; QO2PAF; QO816L100RB; QO342L225G; QO24L70RB; QO324L125G
