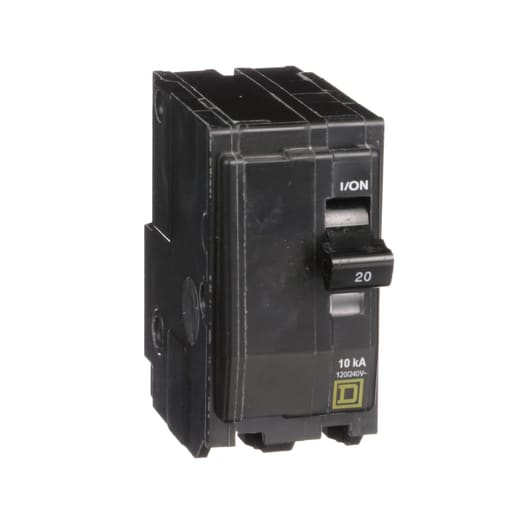

Square-D / Schneider - Square D QO220 20A 120/240v 2Pole Miniature Circuit Breaker, Plug-In

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901400363

  • Amperage - 20 Amp

  • Applications - HACR rated

  • Catalog Number - QO220

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901400363

Part #

116806

Catalog #

QO220

Commercial reference

QO220

12-Digit UPC:

785901400363

Amperage:

20 Amp

Applications:

HACR rated

Catalog Number:

QO220

Circuit Breaker Type:

Standard

Conductor Size:

14-8 AWG

Country of Origin:

USA

Current:

20 Amp

Depths:

74 mm

ERP_productname:

SQD QO220 2P-120/240V-20A CB

Family Brand Name:

Square D

Heights:

76 mm

Interrupt Rating:

5, 10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

38 mm

SoneparProductId:

SKU_US_25337600

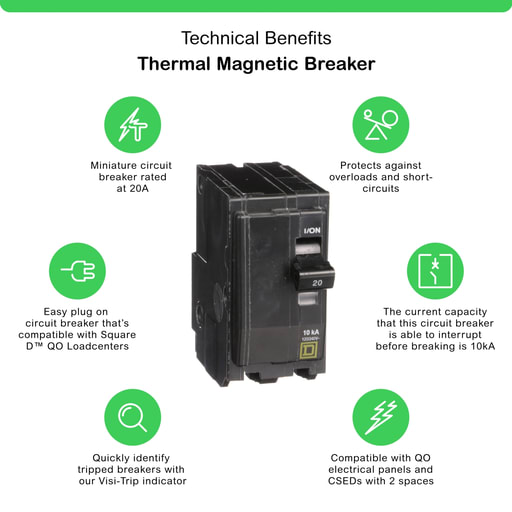

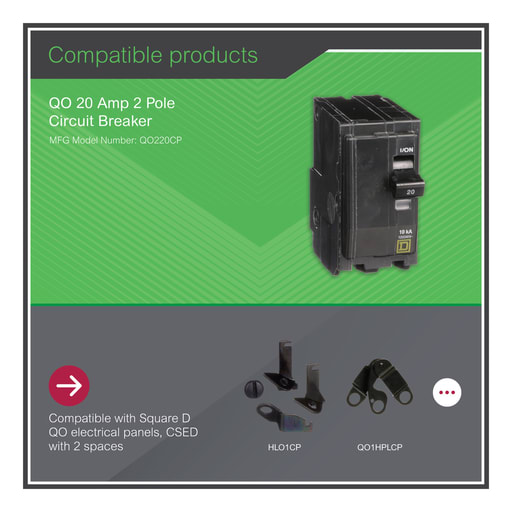

Square D™ QO™ and QOB Miniature Circuit Breakers, QO220, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: CQO112L100PGC; CQO124M100PC; CQO132M100PC; NQSE342100S; NQSE342400S; PBPQO4A100; QO124L125PGRB; QO130L200PWG; QO130M150P; QO142M200PQ; QO142M200PRB; QO148L125GF; QO148L125GRB; QO148L125GS; QO154M200PC; QO1612M125FTRB; QO1PL; QO2100BNF; QO2DTI; QO2L70RB; QO320ML1; QO330MQ125RB; QO342L225G; QO342L225GRB; QO342ML2; QO342MQ150; QO342MQ200; QO342MQ200RB; QO342MQ225; QO342MQ225RB; QO35FM30TTS; QO403L60NF; QO403L60NRB; QO403L60NS; QO48M30DSGP; QO4L100S; QO612L100DSCU; QO612L100RBCU; QO612L100S; QO612L100TRB; QO6L100S; QO816L100F; QO816L100RB; QO816L100TS; QO8L100S; QOM22225NRB; QOM22225NS; QOMB1100; QOMB2; QOMB2L125; QON24L70; QON2L40; QON2L70; QON318L200; QON324L200; QON330L200; QON330L200I; QON342L225; QON816L100; QON816L100BP; HLO1; QO1816M200FTRB; QO2DTIM; QO612L100RB; QO2PAF; QO24L70RB
