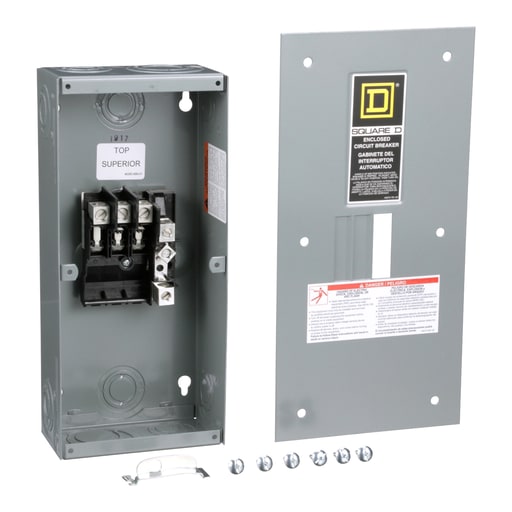

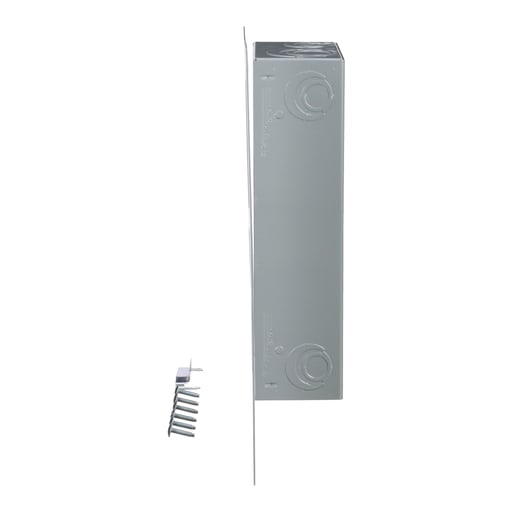

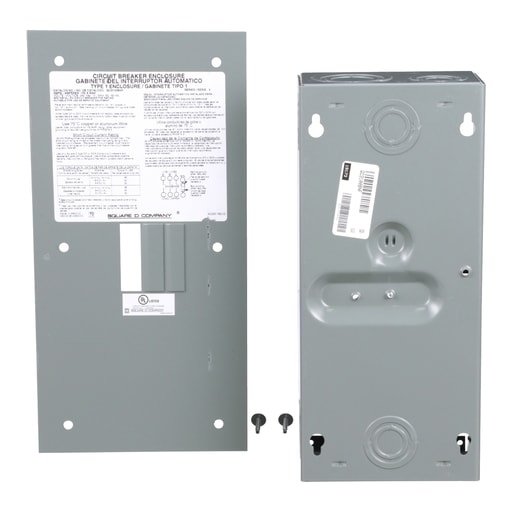

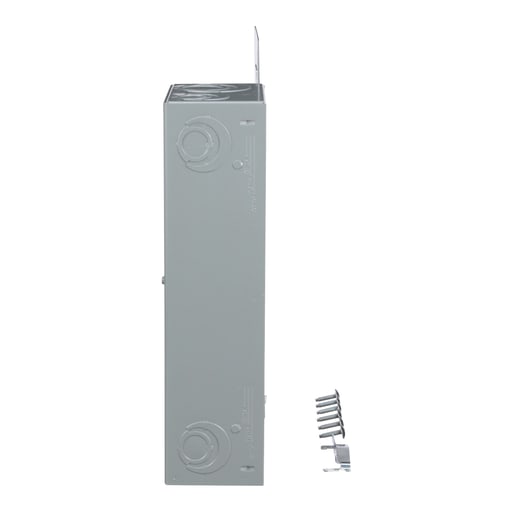

Square-D / Schneider - Square D QO3100BNF 100 Amp 5.88 x 3.38 x 13.12 Inch Steel NEMA 1 Flush Mount Circuit Breaker Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901051756

  • Amperage - 100 Amp

  • Applications - QO

  • Catalog Number - QO3100BNF

  • Conductor Size - 14-1 AWG (AL)/12-1 AWG (CU)

Packaging

  • 1 ea

EAN

00785901051756

Part #

110147

Catalog #

QO3100BNF

Commercial reference

QO3100BNF

12-Digit UPC:

785901051756

Amperage:

100 Amp

Applications:

QO

Catalog Number:

QO3100BNF

Conductor Size:

14-1 AWG (AL)/12-1 AWG (CU)

Country of Origin:

Mexico

Current:

100 Amp

Depths:

3.4 Inch

ERP_productname:

SQD QO3100BNF ENCLOSURE QO CB 240V 100A NEMA 1FLUSH

Enclosure:

1

Enclosure Material:

Steel

Enclosure Type:

Enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

333 mm

Interrupt Rating:

22 kAIC

Length:

3.4 Inch

Material:

Copper

NEMA Size:

1

Number of Phases:

3 Phase

Short Circuit Current:

22 kA

Sub Brand:

QO

Tc Connection:

AWG 14...AWG 1 COPPER-AWG 12...AWG 1 ALUMINIUM,LUGS

Type:

Enclosure;Enclosure

Voltage:

120/240 VAC

Widths:

149 mm

SoneparProductId:

SKU_US_25688969

Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This NEMA 1 enclosure is 3 phase and 3 spaces. It is rated at 100A and has a flush cover. This product is UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PKOGTA2; QO115VH; QO3100VH; QO110VH; QO130GFI; QOB120GFI; QO115GFI; QO120GFI; QO220GFI
