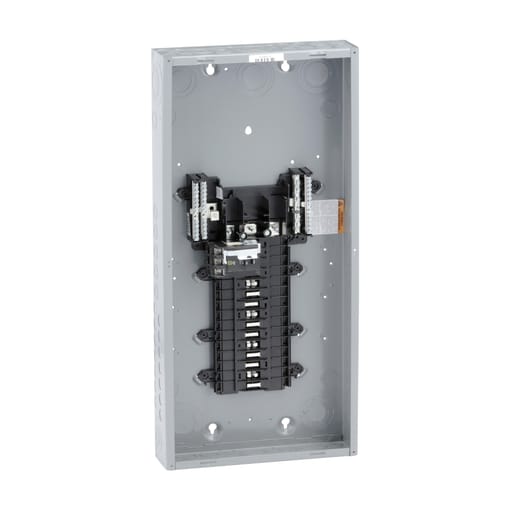

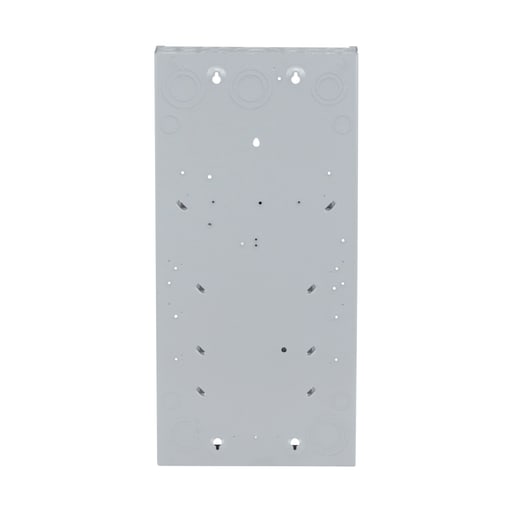

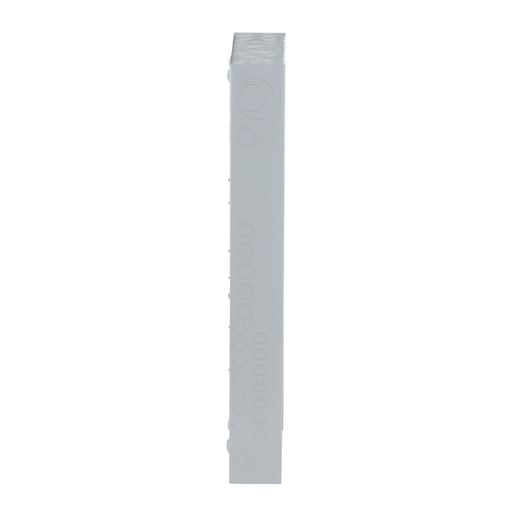

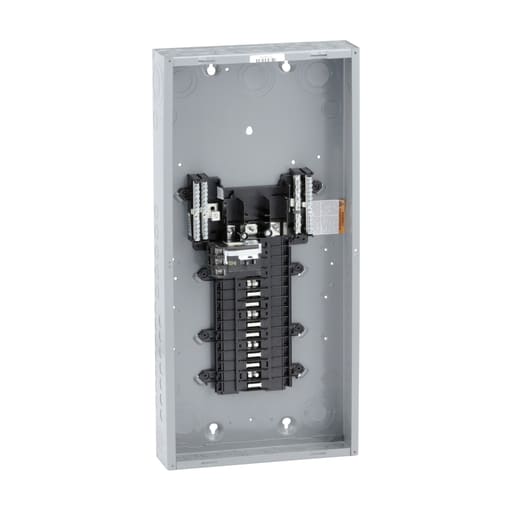

Square-D / Schneider - Square D QO327M100 Load Center 100A 240V 3Ph 27SP NEMA-1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901295464

  • Amperage - 100 Amp

  • Applications - DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

  • Catalog Number - QO327M100

  • Conductor Size - 4-2/0 AWG

Packaging

  • 1 ea

EAN

00785901295464

Part #

118426

Catalog #

QO327M100

Commercial reference

QO327M100

12-Digit UPC:

785901295464

Amperage:

100 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO327M100

Conductor Size:

4-2/0 AWG

Country of Origin:

USA

Current:

100 Amp

ERP_productname:

SQD QO327M100 QO LD CTR

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

758 mm

Interrupt Rating:

25 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

1

Number of Circuits:

27

Number of Phases:

3,4 Phase

Short Circuit Current:

25 kA

Short Circuit Current Ratng:

25 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

120 Volt

Widths:

362 mm

Wire Size:

AWG 4...AWG 2/0 aluminium/copper NULL

SoneparProductId:

SKU_US_25713069

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 100 A and 3 phase. This system provides 27 spaces in a NEMA 1 enclosure. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK15GTA; QO120; QO2175SB; QOC30UF; QOFP; QO230; QO250PSPD; QOC30US; HEPD25; QO115; QOC30UC; SDSA3650; HEPD50; QO240; QOC30UFW; HEPD80; QO250; HEPD25MKF; HEPD58MKF; S106
