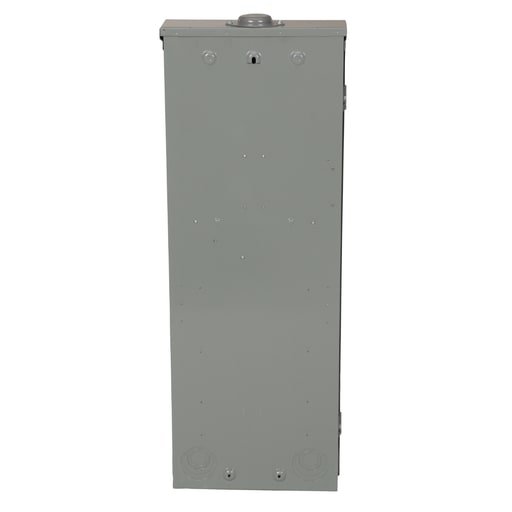

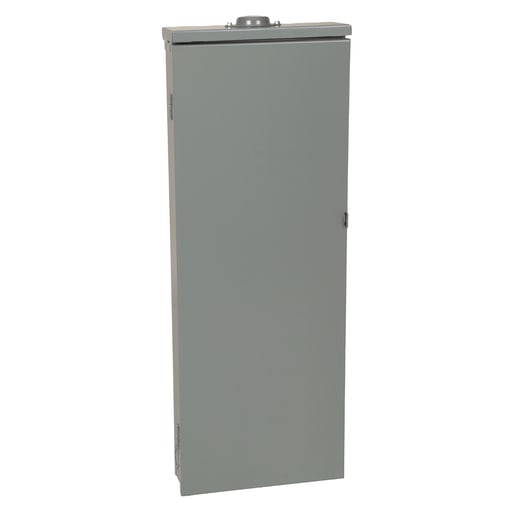

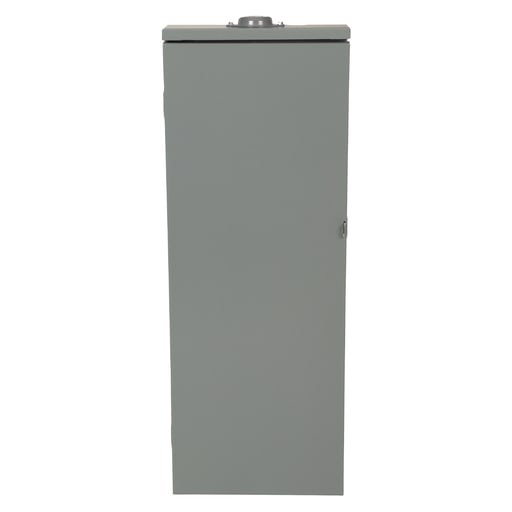

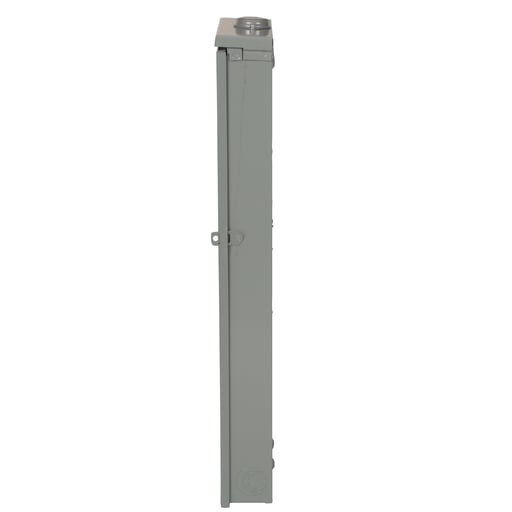

Square-D / Schneider - Square D QO330MQ125RB Load Center RB MB 125A 120/240V 3Ph 30SP NEMA-3R

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901290599

  • Amperage - 125 Amp

  • Applications - DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

  • Catalog Number - QO330MQ125RB

  • Conductor Size - 4 AWG-300 kcmil

Packaging

  • 1 ea

EAN

00785901290599

Part #

118551

Catalog #

QO330MQ125RB

Commercial reference

QO330MQ125RB

12-Digit UPC:

785901290599

Amperage:

125 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO330MQ125RB

Conductor Size:

4 AWG-300 kcmil

Country of Origin:

USA

Current:

125 Amp

ERP_productname:

SQD QO330MQ125RB

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

1000 mm

Interrupt Rating:

25 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

3R

Number of Circuits:

30

Number of Phases:

3,4 Phase

Short Circuit Current:

25 kA

Short Circuit Current Ratng:

25 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120 Volt

Widths:

375 mm

Wire Size:

AWG 4...300 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_69895409

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a convertible main and is rated at 125 A and 3 phase. This system provides 30 spaces in a NEMA 3R enclosure. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LK100AN; QO120; QO2175SB; QOM2FP; PK6FL; QO115; QO250PSPD; HEPD25; PKGTAB; QO230; SDSA3650; HEPD50; QO115CAFI; QO3125SL; HEPD80; QO220; QOL3125; HEPD25MKF; QO120DF; HEPD58MKF; PK18GTA; QO120CAFI; QO240; QO250; QO260; QO120GFI; QO215
