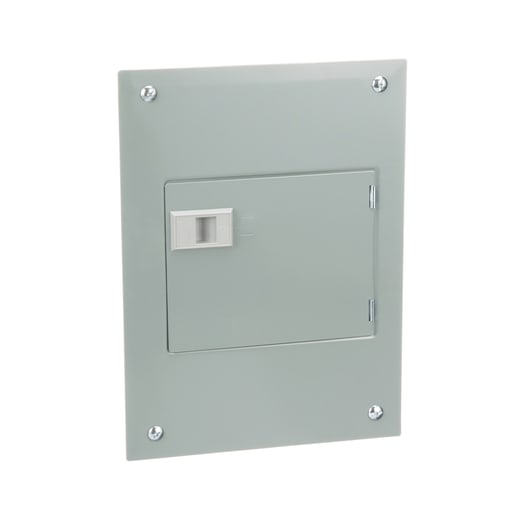

Square-D / Schneider - Square D QO612L100DF 120/240 VAC 100 Amp 1-Phase 3-Wire 12-Circuit NEMA 1 Fixed Main Lug Load Center

12-Digit UPC:

785901785644

Amperage:

100 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO612L100DF

Conductor Size:

8-1 AWG

Country of Origin:

Mexico

Current:

100 Amp

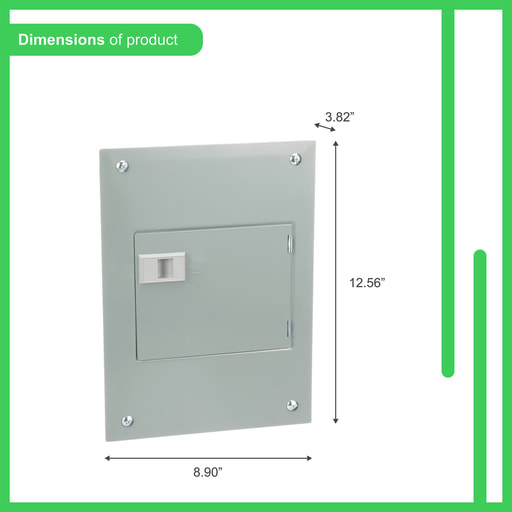

Depths:

95 mm

ERP_productname:

SQD QO612L100DF LOAD CENTER

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

319 mm

Interrupt Rating:

10 kAIC

Material:

Tin Plated Aluminium: Busbar

NEMA Size:

1

Number of Circuits:

12

Number of Phases:

1,3 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Sub Brand:

QO

Type:

LOAD CENTER

Voltage:

120/240 Volt

Widths:

226 mm

Wire Size:

AWG 8...AWG 1 aluminium/copper

SoneparProductId:

SKU_US_25706986
