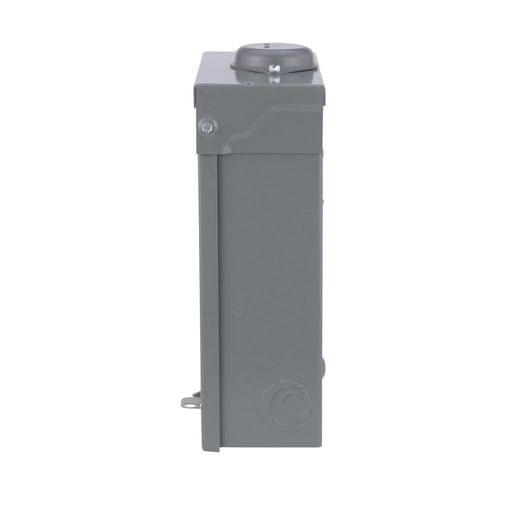

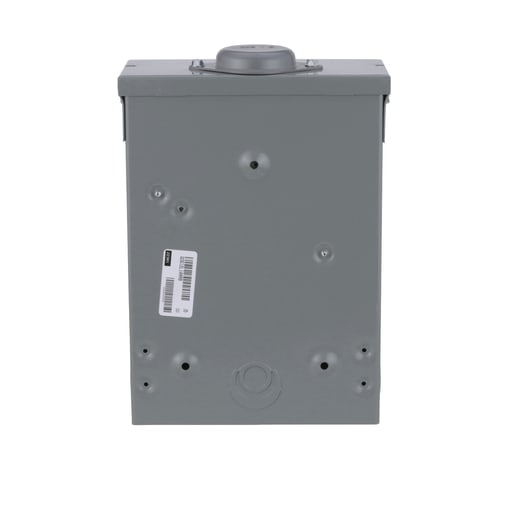

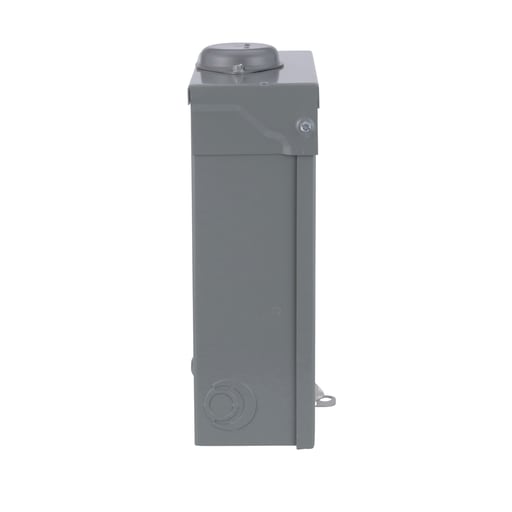

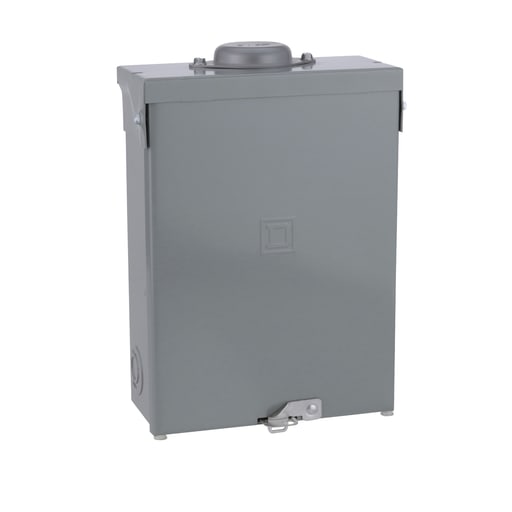

Square-D / Schneider - Square D QO612L100RB Load Center MLO 120/240V 1Ph 6SP NEMA-3R

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901785590

  • Amperage - 100 Amp

  • Applications - DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

  • Catalog Number - QO612L100RB

  • Conductor Size - 8-1 AWG

Packaging

  • 1 ea

EAN

00785901785590

Part #

120009

Catalog #

QO612L100RB

Commercial reference

QO612L100RB

12-Digit UPC:

785901785590

Amperage:

100 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO612L100RB

Conductor Size:

8-1 AWG

Country of Origin:

Mexico

Current:

100 Amp

ERP_productname:

SQD QO612L100RB RT LD-CNTR

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

321 mm

Interrupt Rating:

10 kAIC

Material:

Tin Plated Aluminium: Busbar

NEMA Size:

3R

Number of Circuits:

12

Number of Phases:

1,3 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

120/240 Volt

Widths:

226 mm

SoneparProductId:

SKU_US_69895387

QO® Circuit Breaker Load Centers, QO612L100RB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LK70AN; PKSB1QOBF; PSDS; QO1105237; QO1155237; QO115CP; QO115HM; QO115PL; QO115VH; QO120; QO1201021; QO120CP; QO120EPD; QO120HID; QO120HM; QO120VHGFI; QO120VHPCAFI; QO125; QO130CP; QO130EPD; QO130GFI; QO130VH; QO135; QO140; QO150; QO160; QO2020; QO20303020; QO210; QO2100; QO21001021; QO2100VH; QO2125; QO2125VH; QO215CAFI; QO215GFI; QO215SWN; QO215VH; QO2175SB; QO2201021; QO220CAFI; QO220CP; QO220EPD; QO220GFI; QO220H; QO220HID; QO220SWN; QO220VH; QO2301021; QO2305219; QO230CP; QO230EPD; QO230GFI; QO230H; QO230VH; QO235; QO2401021; QO240GFI; QO240VH; QO245; QO2501021; QO250CP; QO250GFI; QO250PL; QO250VH; QO2601021; QO260GFI; QO260VH; QO270; QO280; QO280VH; QO290; QO290VH; QO3030; QO310; QO3100; QO3100VH; QO315; QO3155237; QO320; QO3205237; QO325; QO330; QO3301021; QO3305237; QO330VH; QO335; QO340; QO3401021; QO340VH; QO345; QO350; QO3501021; QO350VH; QO360; QO3601021; QO360VH; QO370; QO380; QO390; QOFP; QON612L100; LSDL; QO115; QO250PSPD; HEPD25; PK2MB; QO230; HEPD50; PK6FL; QO115CAFI; HEPD80; PK7GTA; QO220; HEPD25MKF; QO120DF; HEPD58MKF; QO120CAFI; QO240; QO250; QO260; QO120GFI; QO215; QO225
