Square-D / Schneider - Square D QO816L100F Load Center MLO 100A 120/240V 1Ph 8SP NEMA-1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901785675

  • Amperage - 100 Amp

  • Applications - DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

  • Catalog Number - QO816L100F

  • Conductor Size - 8-1 AWG

Packaging

  • 1 ea

EAN

00785901785675

Part #

121078

Catalog #

QO816L100F

Commercial reference

QO816L100F

12-Digit UPC:

785901785675

Amperage:

100 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO816L100F

Conductor Size:

8-1 AWG

Country of Origin:

USA

Current:

100 Amp

ERP_productname:

SQD QO816L100F LOAD CENTER

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

319 mm

Interrupt Rating:

10 kAIC

Material:

Tin Plated Aluminium: Busbar

NEMA Size:

1

Number of Circuits:

16

Number of Phases:

1,3 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

120/240 Volt

Widths:

226 mm

SoneparProductId:

SKU_US_25707898

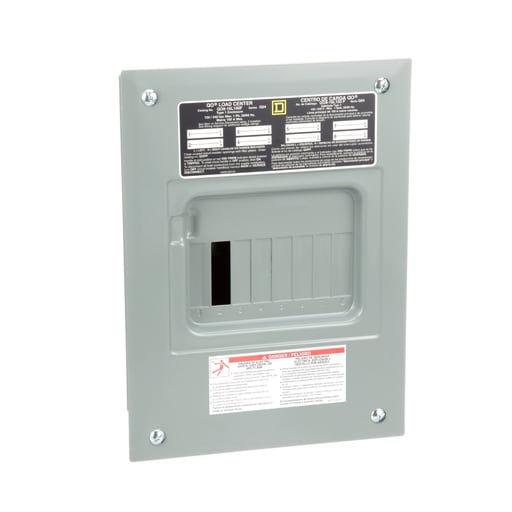

QO® Circuit Breaker Load Centers, QO816L100F, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK2MB; PK7GTA; QO120; QO2175SB; QOFP; LK70AN; QO115; QO250PSPD; HEPD25; PK6FL; QO230; HEPD50; QO115CAFI; HEPD80; QO220; HEPD25MKF; QO120DF; HEPD58MKF; QO120CAFI; QO240; QO250; QO260; QO120GFI; QO215; QO225; QO115DF; QO130
