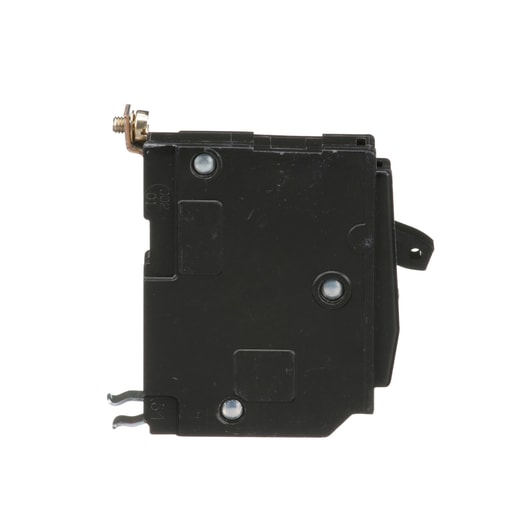

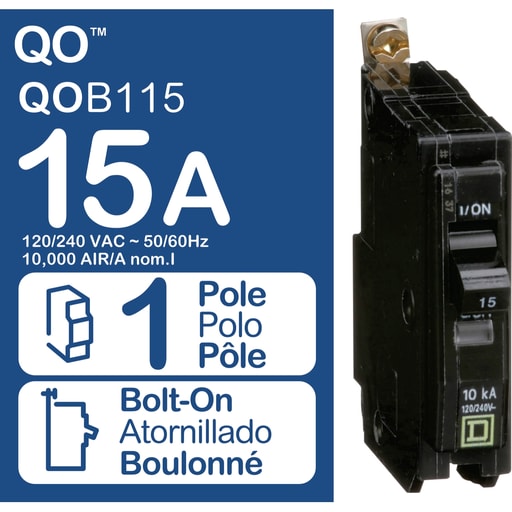

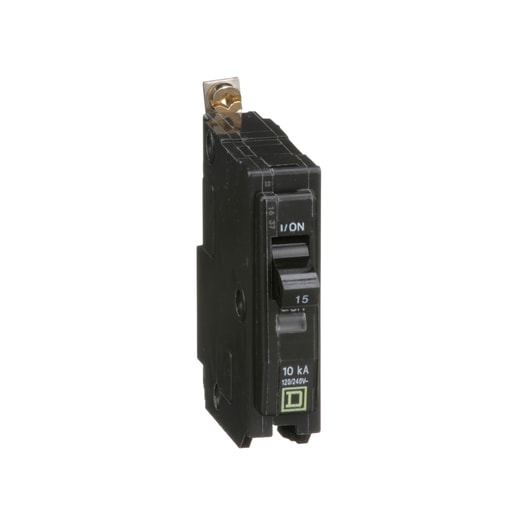

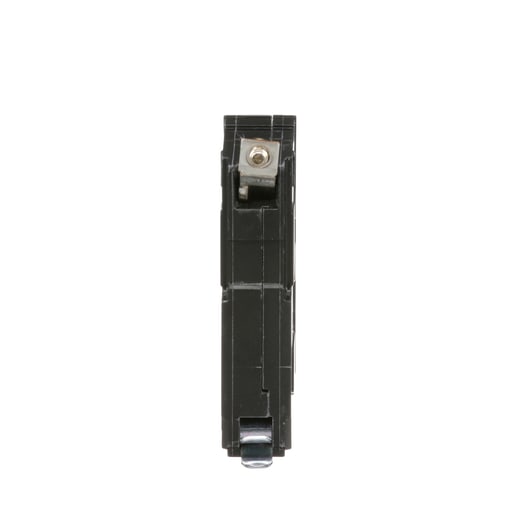

Square-D / Schneider - Square D QOB115 Miniature Circuit Breaker 15A 120/240V 1Ph , Bolt-On

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QOB bolt on circuit breaker with common trip is rated as 15 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 Compatible Products: NQ442L2C; QO1HT; QO70AN; NQ430L2C; QON3B; QOTHT; NQ430L1C; QO1PJ15; QO3HT; NQ42L2C; QO1LO; QOFSLALB12; HLO1; NQ442L4C; NQ442L2; QOHPL; NQ418L1C; QO1PA; NQ454L2C; QOTHPA; QO1PAF; QO2DTI; QO2DTIM; QON2L70; QOMB1; SN12125
