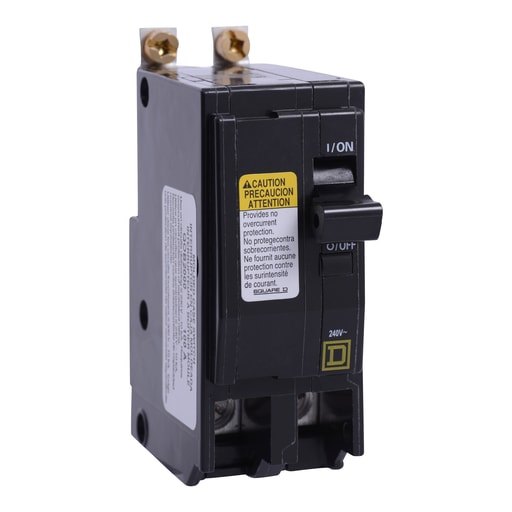

Square-D / Schneider - Square D QOB2000 240 VAC 100 Amp Molded Case Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901120629
Amperage - 100 Amp
Catalog Number - QOB2000
Country of Origin - Mexico
Current - 100 Amp
Packaging
1 ea
EAN
00785901120629
Part #
210829
Catalog #
QOB2000
Commercial reference
QOB2000
12-Digit UPC:
785901120629
Amperage:
100 Amp
Catalog Number:
QOB2000
Country of Origin:
Mexico
Current:
100 Amp
Depths:
2.91 Inch
ERP_productname:
SQD QOB2000 NON-AUTOMATIC MINIATURE SWITCH 240V 100A
Family Brand Name:
Square D
Heights:
3-1/2 Inch
Mounting Type:
Bolt-on
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Size:
1.5 IN,2.91 IN,3.5 IN
Sub Brand:
QO
Tc Connection:
AWG 4...2/0 KCMIL COPPER OR ALUMINIUM,BOX LUGS
Type:
SWITCH
Voltage:
240 Volt
Widths:
1.5 in
SoneparProductId:
SKU_US_26319432
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO non automatic miniature switch is rated as 100 A, 240 V, and 2 pole. This unit provides 10 kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
