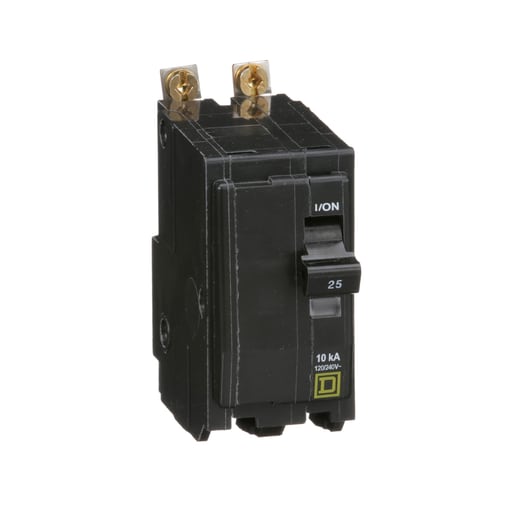

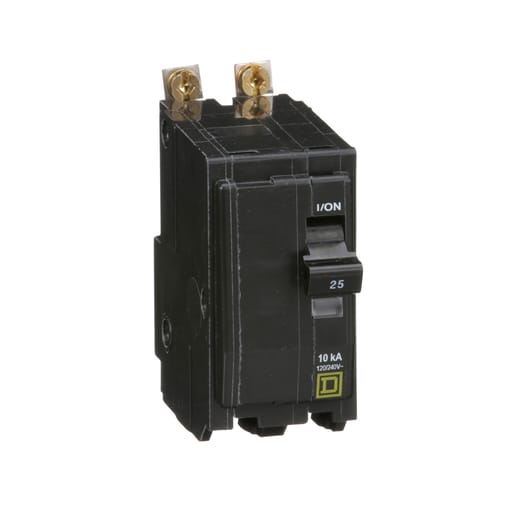

Square-D / Schneider - Square D QOB225 Miniature Circuit Breaker 25A 120/240V 1Ph 2P , Bolt-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901368281

  • Amperage - 25 Amp

  • Applications - HACR rated

  • Catalog Number - QOB225

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901368281

Part #

110534

Catalog #

QOB225

Commercial reference

QOB225

12-Digit UPC:

785901368281

Amperage:

25 Amp

Applications:

HACR rated

Catalog Number:

QOB225

Circuit Breaker Type:

Standard

Conductor Size:

14-8 AWG

Country of Origin:

Mexico

Current:

25 Amp

Depths:

74 mm

ERP_productname:

SQD QOB225 2P-120/240V-25A CB

Family Brand Name:

Square D

Heights:

76 mm

Interrupt Rating:

5, 10 kAIC

Length:

2.91 Inch

Mounting Type:

Bolt-on

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

38 mm

Wire Size:

AWG 14...AWG 8 copper or aluminium

SoneparProductId:

SKU_US_25608596

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB225, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: HLO1; NQ442L2C; QO1PL; QO70AN; NQ430L2C; QO2DTI; QO2PAF; QON3B; NQ430L1C; QO1PJ15; QO2DTIM; NQ42L2C; QOFSHALB12; NQ442L4C; NQ442L2; NQ418L1C; NQ454L2C; NQ30L2C; NQ18L1C; NQ430L2
