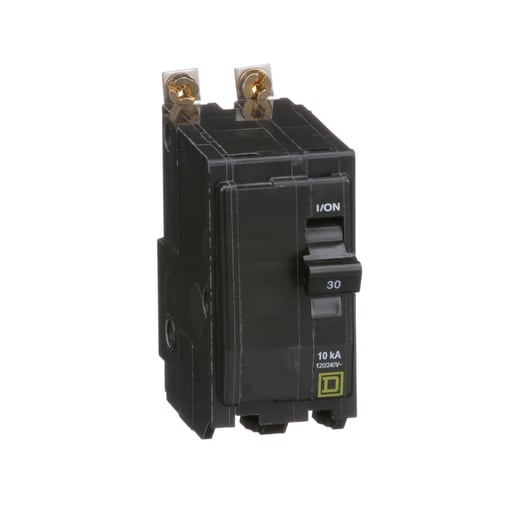

Square-D / Schneider - Square D QOB230 30A 120/240v 2Pole Circuit Breaker, Bolt-On

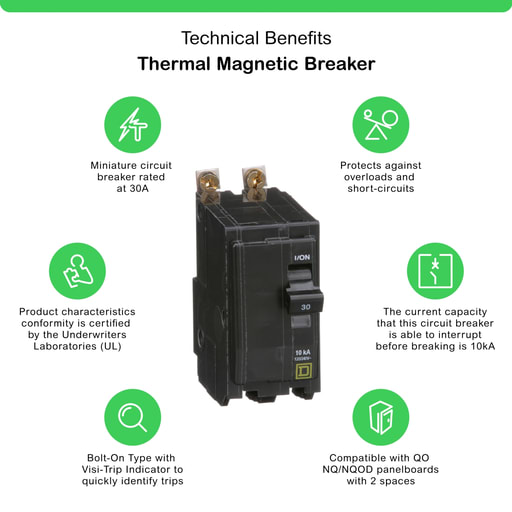

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QOB bolt on circuit breaker with common trip is rated as 30 A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: NQ18L1; NQ30L1C; NQ30L1C14; NQ30L1C14GS; NQ30L4; NQ30L4C; NQ42L4; NQ42L4C; NQ430L4; NQ430L4C; NQ442L2C; NQ442L6C; NQ454L2; NQ454L4C; NQ472L2; NQ472L2C; NQ472L4; NQ472L4C; NQ484L2; NQ484L4C; NQ484L6C; NQ54L4C; NQ72L2; NQ84L4C; NQSE342100S; NQSE342400S; QO1HT; QO1PL; QO70AN; NQ430L2C; QON3B; QOTHT; NQ430L1C; QO1PJ15; QO3HT; HLO1; NQ42L2C; QOFSLALB12; NQ442L4C; QOHPL; NQ442L2; NQ418L1C; QO1HPL; NQ454L2C; QO1PA; NQ30L2C; QO2PAF; NQ18L1C; QO2125SL; NQ430L2; QO2DTI; QO2DTIM; QON2L70; QOMB1; SN12125
