Square-D / Schneider - Square D QOB250 Miniature Circuit Breaker 50A 120/240V 1Ph 2P , Bolt-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901416982

  • Amperage - 50 Amp

  • Applications - HACR rated

  • Catalog Number - QOB250

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901416982

Part #

110637

Catalog #

QOB250

Commercial reference

QOB250

12-Digit UPC:

785901416982

Amperage:

50 Amp

Applications:

HACR rated

Catalog Number:

QOB250

Circuit Breaker Type:

Standard

Conductor Size:

8-2 AWG

Country of Origin:

USA

Current:

50 Amp

Depths:

74 mm

ERP_productname:

SQD QOB250 2P 50AMP CB

Family Brand Name:

Square D

Heights:

79 mm

Interrupt Rating:

5, 10 kAIC

Length:

2.91 Inch

Mounting Type:

Bolt-on

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Box lugs

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

38 mm

SoneparProductId:

SKU_US_25420324

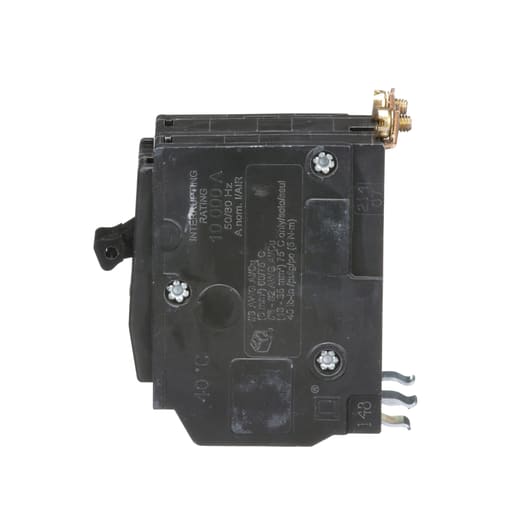

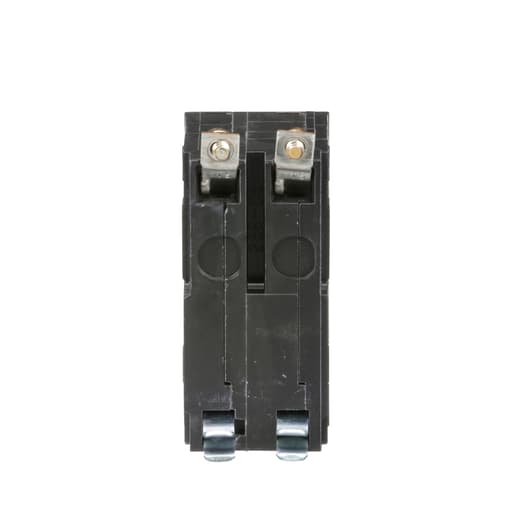

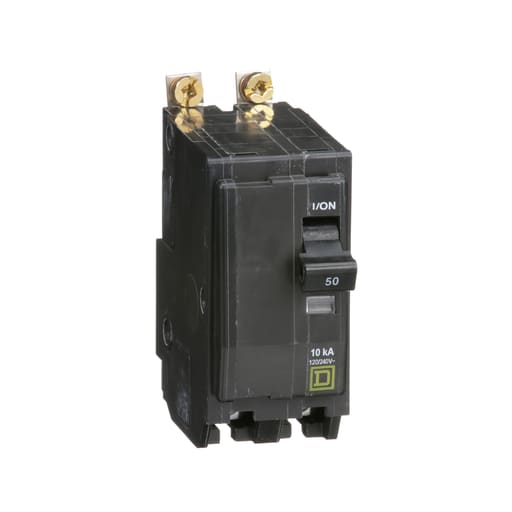

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB250, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: HLO1; NQ442L2C; QO1PL; QO70AN; NQ430L2C; QO2DTI; QO2PAF; QON3B; NQ430L1C; QO1PJ15; QO2DTIM; NQ42L2C; QOFSHALB12; NQ442L4C; NQ442L2; NQ418L1C; NQ454L2C; NQ30L2C; NQ18L1C; NQ430L2
