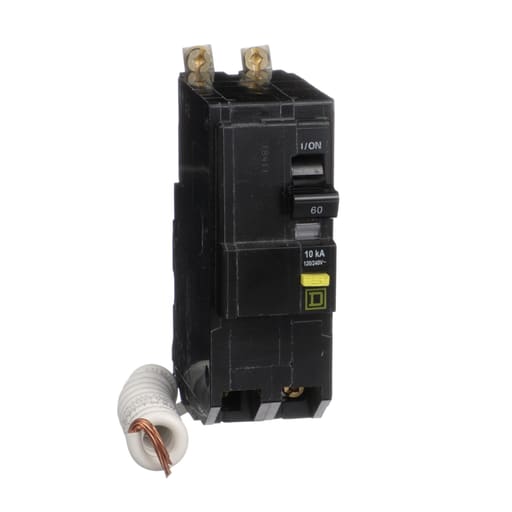

Square-D / Schneider - Square D QOB260GFI 2-Pole 60 Amp 120/240 Volt Ground Fault Miniature Circuit Breaker

CopyCopy
Square-D / Schneider - Square D QOB260GFI 2-Pole 60 Amp 120/240 Volt Ground Fault Miniature Circuit Breaker

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901363002

  • Amperage - 60 Amp

  • Applications - PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO OFFER CLASS A GROUND-FAULT PROTECTION FOR PEOPLE

  • Catalog Number - QOB260GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901363002

Part #

126260

Catalog #

QOB260GFI

Commercial reference

QOB260GFI

12-Digit UPC:

785901363002

Amperage:

60 Amp

Applications:

PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO OFFER CLASS A GROUND-FAULT PROTECTION FOR PEOPLE

Catalog Number:

QOB260GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

12-4 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

60 Amp

Depths:

74 mm

ERP_productname:

SQD QOB260GFI MINIATURE CIRCUIT BREAKER 120/240V 60A

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Bolt-on

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

BOX LUGS #12 TO #4 AWG(AL) - #14 TO #6 AWG(CU)

Type:

MINIATURE CIRCUIT BREAKER

Voltage:

120/240 Volt

Widths:

38 mm

Wire Size:

AWG 12...AWG 4 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_26616729

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
