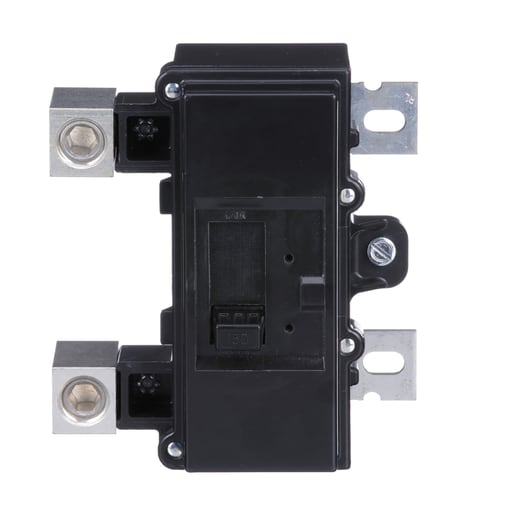

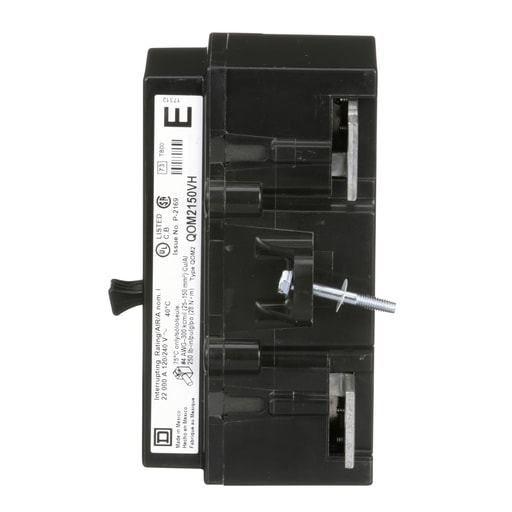

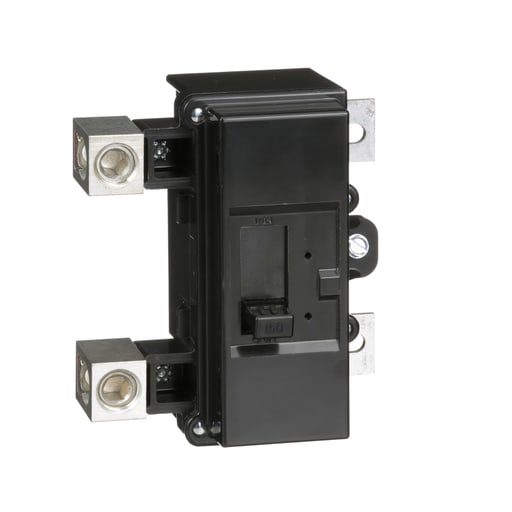

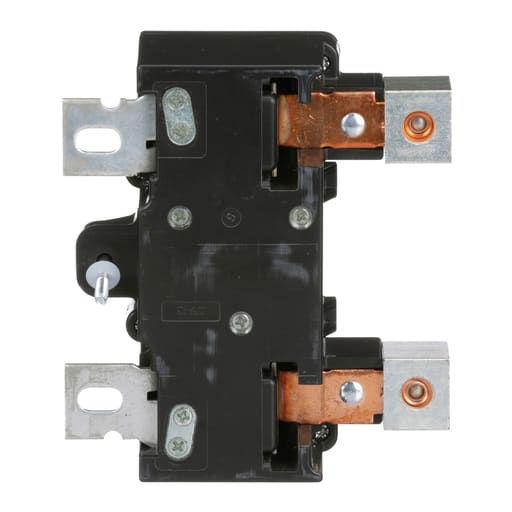

Square-D / Schneider - Square D QOM2150VH Main Circuit Breaker 150A 120/240V 1Ph 2P , Bolt-On

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This two pole QO bolt on main circuit breaker is rated as 150A, 120/240 VAC. This circuit breaker provides 22 kA breaking capacity. This circuit breaker is for QO or HOM load centers. A full line of accessories are available. The lug connectors will accept one 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.60 inches, a width of 3.60 inches and a depth of 5.07 inches. This QO main circuit breakers is UL Listed and are CSA certified. Compatible Products: HOM3060M150PC; QC816F150C; QOM22225NRB; QOM2E2200NRB; QOM2PA; QO130M150P; QOM22225NS; RC816F150C; QC816F150S; QO132M150P; QOM22225NF; QO124M150P; RC816F150CH; RC2040M150CH; SC816F150PS
