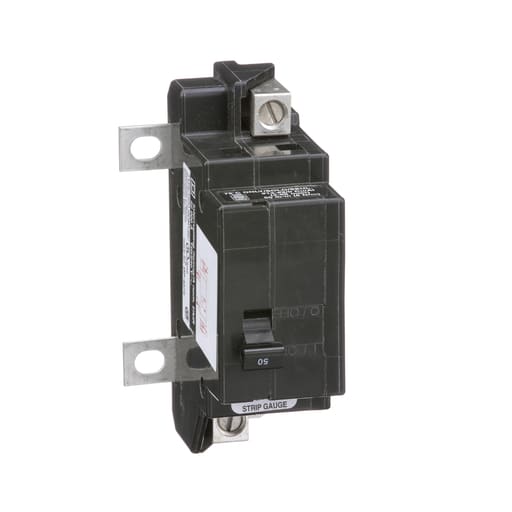

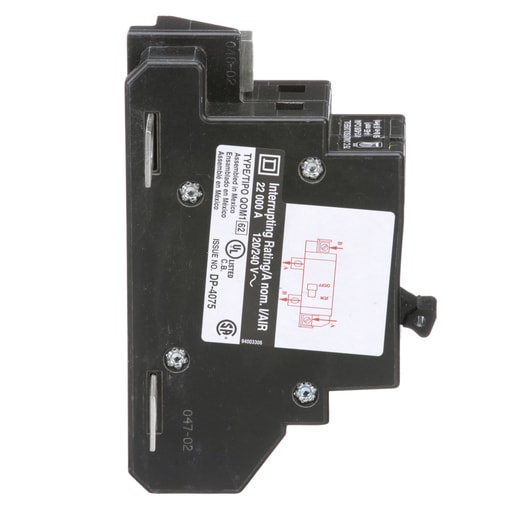

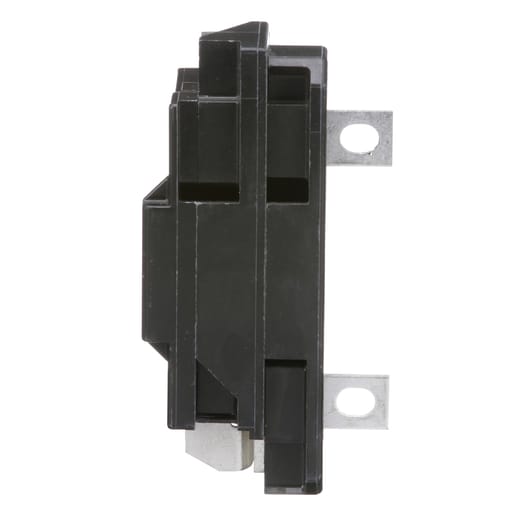

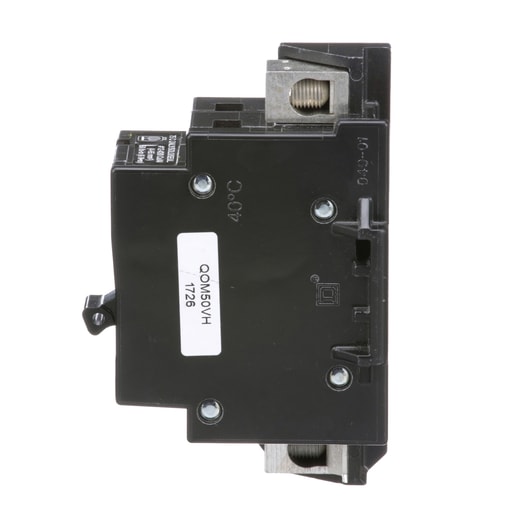

Square-D / Schneider - Square D QOM50VH Main Circuit Breaker 50A 120/240V 1Ph 2P , Bolt-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901879596

  • Amperage - 50 Amp

  • Applications - LOAD CENTER MAIN BREAKER

  • Catalog Number - QOM50VH

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901879596

Part #

133088

Catalog #

QOM50VH

Commercial reference

QOM50VH

12-Digit UPC:

785901879596

Amperage:

50 Amp

Applications:

LOAD CENTER MAIN BREAKER

Catalog Number:

QOM50VH

Circuit Breaker Type:

Standard

Conductor Size:

4-2/0 AWG

Country of Origin:

USA

Current:

50 Amp

Depths:

127 mm

ERP_productname:

SQD QOM50VH CIRC BRK

Family Brand Name:

Square D

Heights:

129 mm

Interrupt Rating:

10, 22 kAIC

Length:

5 Inch

Mounting Type:

Bolt-on

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

BOX LUGS

Type:

CIRCUIT BREAKER

Voltage:

120/240 Volt

Widths:

88 mm

Wire Size:

AWG 4...AWG 2/0 aluminium/copper NULL

SoneparProductId:

SKU_US_25760722

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 50A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 Compatible Products: QO1HT; QOTHT; QO3HT; QO1LO; HLO1; QOHPL; QO1PA; QOTHPA; QO1PAF; QO2DTI; QO2DTIM; QON2L70; QOMB1; SN12125
