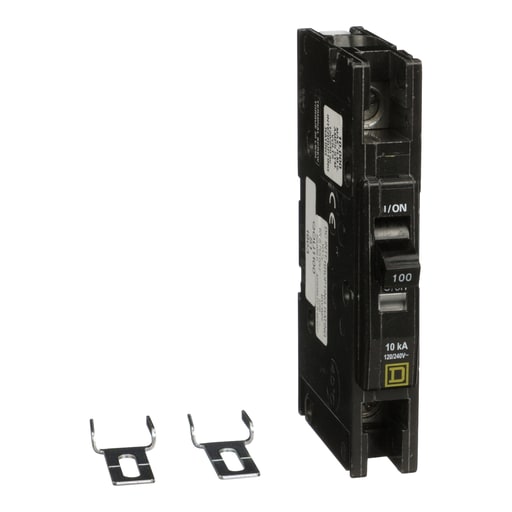

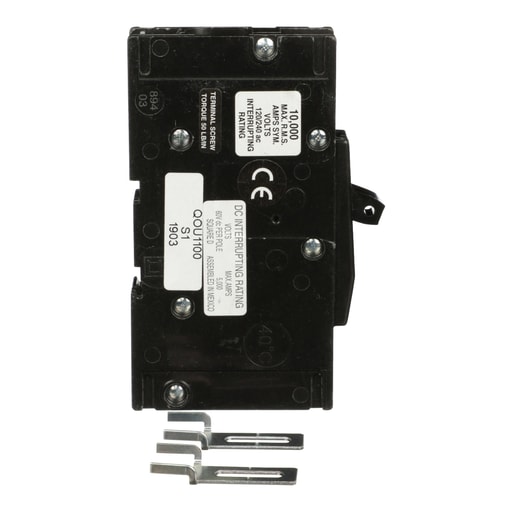

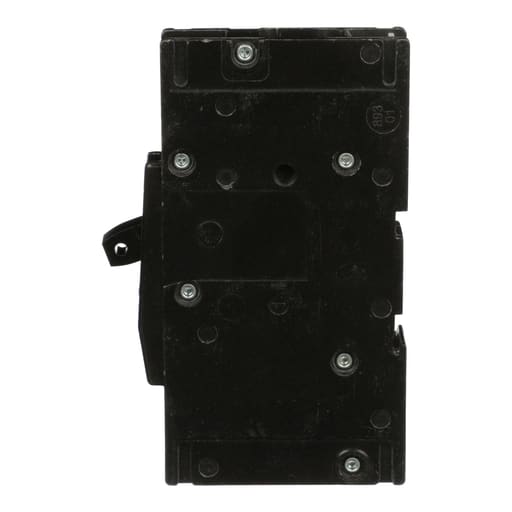

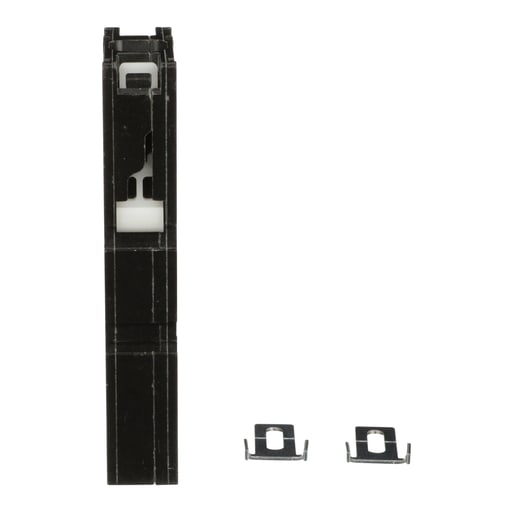

Square-D / Schneider - Square D QOU1100 1-Pole 100 Amp 120/240 Volt Thermal Magnetic/Common Trip Miniature Circuit Breaker

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901478546

  • Amperage - 100 Amp

  • Applications - QOU

  • Catalog Number - QOU1100

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901478546

Part #

257337

Catalog #

QOU1100

Commercial reference

QOU1100

12-Digit UPC:

785901478546

Amperage:

100 Amp

Applications:

QOU

Catalog Number:

QOU1100

Circuit Breaker Type:

Standard

Country of Origin:

Mexico

Depths:

2.95 Inch

ERP_productname:

SQD QOU1100 MINI CIRCUIT BREAKER, QOU, 100A, 1 POLE, 120/240 VAC, 10KA

Family Brand Name:

Square D

Heights:

4.45 Inch

Interrupt Rating:

5, 10 kAIC

Length:

2.95 Inch

Mounting Type:

Unit Mount

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QOU

Tc Connection:

LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

0.75 in

SoneparProductId:

SKU_US_26897546

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. Prop 65: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QOUMF1B; QOUHFSC1; QOUMF1
