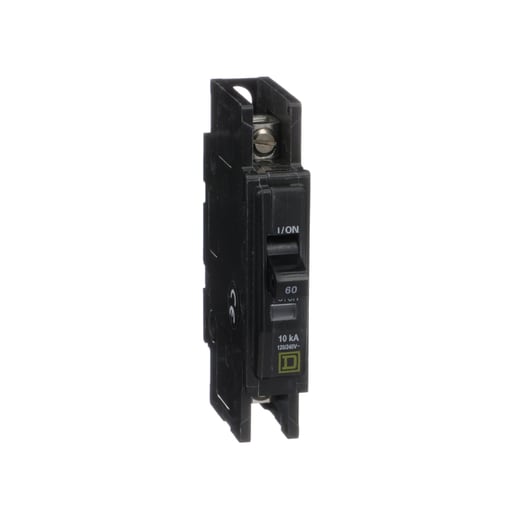

Square-D / Schneider - Square D QOU160 1-Pole 60 Amp 120/240 Volt Thermal Magnetic/Common Trip Miniature Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901489344
Amperage - 60 Amp
Applications - HACR and Switching Duty rated
Catalog Number - QOU160
Circuit Breaker Type - Standard
Packaging
1 ea
EAN
00785901489344
Part #
210037
Catalog #
QOU160
Commercial reference
QOU160
12-Digit UPC:
785901489344
Amperage:
60 Amp
Applications:
HACR and Switching Duty rated
Catalog Number:
QOU160
Circuit Breaker Type:
Standard
Country of Origin:
USA
Depths:
2.95 Inch
ERP_productname:
SQD QOU160 MINIATURE CIRCUIT BREAKER 120/240V 60A
Family Brand Name:
Square D
Heights:
4.05 Inch
Interrupt Rating:
10 kAIC
Length:
2.95 Inch
Mounting Type:
Unit Mount
Number of Poles:
1 Pole
Short Circuit Current:
10 kA
Sub Brand:
QOU
Tc Connection:
LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)
Type:
Miniature circuit-breaker
Voltage:
120 Volt
Widths:
0.75 in
SoneparProductId:
SKU_US_26778275
