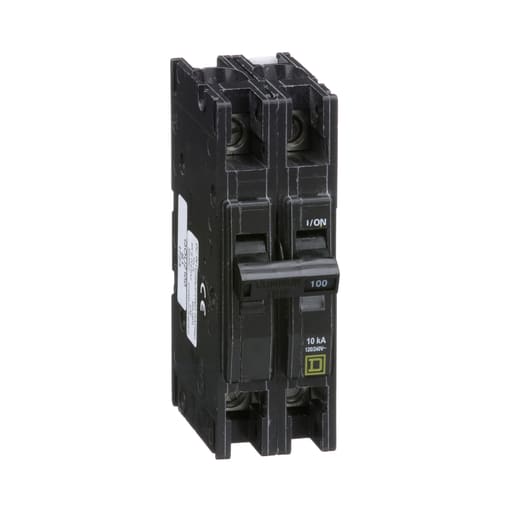

Square-D / Schneider - Square D QOU2100 Miniature Circuit Breaker 100A 120/240V

Essential specifications

12-Digit UPC - 785901060284
Amperage - 100 Amp
Applications - QOU
Catalog Number - QOU2100
Circuit Breaker Type - Standard

Packaging

1 ea

EAN

00785901060284

Part #

113303

Catalog #

QOU2100

Commercial reference

QOU2100

12-Digit UPC:

785901060284

Amperage:

100 Amp

Applications:

QOU

Catalog Number:

QOU2100

Circuit Breaker Type:

Standard

Country of Origin:

Mexico

Depths:

2.95 Inch

ERP_productname:

SQD QOU2100 2P-120/240V-100A CB

Family Brand Name:

Square D

Heights:

4.45 Inch

Interrupt Rating:

10 kAIC

Length:

2.95 Inch

Mounting Type:

Unit Mount

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Sub Brand:

QOU

Tc Connection:

LINE: BOX LUG - LOAD: BOX LUG #12-2/0 AWG(AL/CU)

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

1.5 in

SoneparProductId:

SKU_US_25553560

QO™ and QOU Miniature Circuit Breakers, QOU2100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Prop 65: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: BCV; QOUHFSC1
