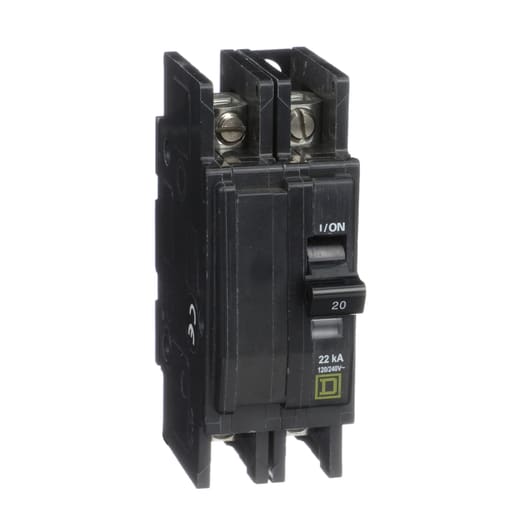

Square-D / Schneider - Square D QOU220VH 120/240 Volt 20 Amp Miniature Circuit Breaker

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901579830

  • Amperage - 20 Amp

  • Applications - QOU

  • Catalog Number - QOU220VH

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901579830

Part #

407472

Catalog #

QOU220VH

Commercial reference

QOU220VH

12-Digit UPC:

785901579830

Amperage:

20 Amp

Applications:

QOU

Catalog Number:

QOU220VH

Circuit Breaker Type:

Standard

Country of Origin:

Mexico

Depths:

2.95 Inch

ERP_productname:

SQD QOU220VH MINI CIRCUIT BREAKER, QOU, 25A, 2 POLE, 120/240VAC, 22KA

Family Brand Name:

Square D

Heights:

4.05 Inch

Interrupt Rating:

22 kAIC

Length:

2.95 Inch

Mounting Type:

Unit Mount

Number of Poles:

2 Pole

Short Circuit Current:

22 kA

Sub Brand:

QOU

Tc Connection:

LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)

Type:

Miniature circuit-breaker

Voltage:

120/240 Volt

Widths:

1.5 in

SoneparProductId:

SKU_US_25553548

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. [Delete] Compatible Products: QOUMF2B; QOU2PAFLA; HLO1; BCV; QOUECB; QOULFSC1B; QOU14100JBAF
