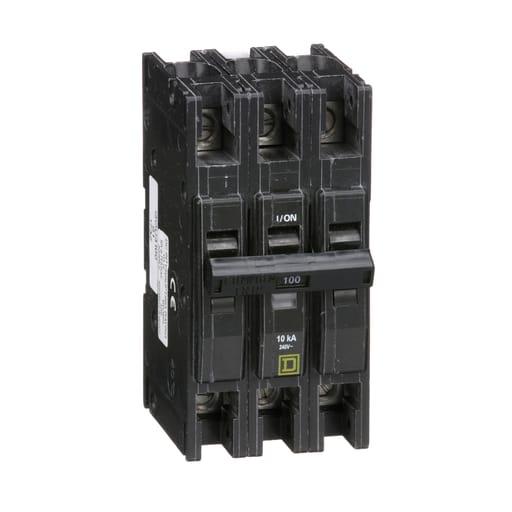

Square-D / Schneider - Square D QOU3100 240 Volt 100 Amp Miniature Circuit Breaker

Essential specifications

12-Digit UPC - 785901060338
Amperage - 100 Amp
Applications - QOU
Catalog Number - QOU3100
Circuit Breaker Type - Standard

Packaging

1 ea

EAN

00785901060338

Part #

113588

Catalog #

QOU3100

Commercial reference

QOU3100

12-Digit UPC:

785901060338

Amperage:

100 Amp

Applications:

QOU

Catalog Number:

QOU3100

Circuit Breaker Type:

Standard

Country of Origin:

Mexico

Depths:

2.95 Inch

ERP_productname:

SQD QOU3100 3P-240V-100A CB

Family Brand Name:

Square D

Heights:

4.45 Inch

Interrupt Rating:

10 kAIC

Length:

2.95 Inch

Mounting Type:

Unit Mount

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Sub Brand:

QOU

Tc Connection:

LINE: BOX LUG - LOAD: BOX LUG #12-2/0 AWG(AL/CU)

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

2.25 in

SoneparProductId:

SKU_US_25625253

QO™ and QOU Miniature Circuit Breakers, QOU3100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Completed with mounted foot as accesory. Prop 65: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: BCV; QOUMF3B; QOUHFSC1
