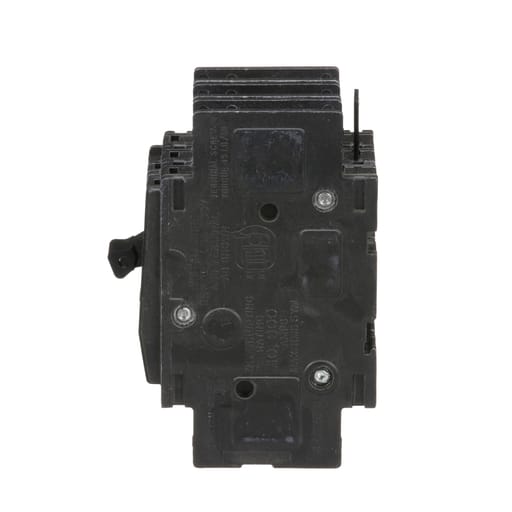

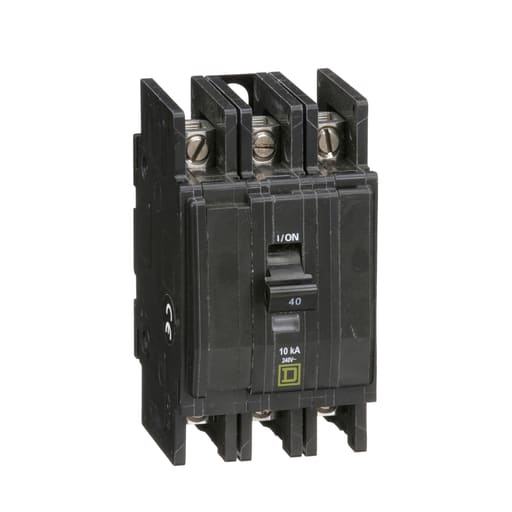

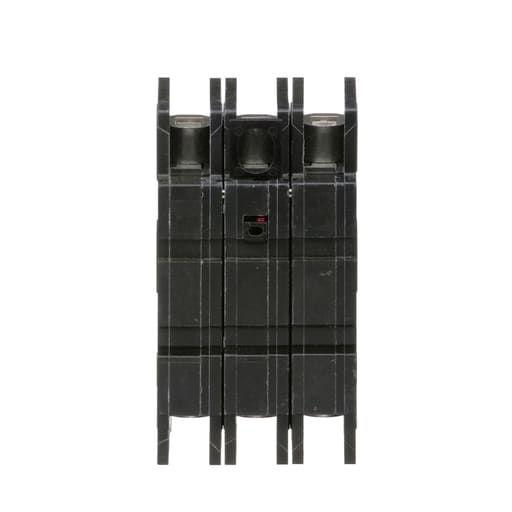

Square-D / Schneider - Square D QOU340 240 Volt 40 Amp Miniature Circuit Breaker

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901418955

  • Amperage - 40 Amp

  • Applications - HACR and Switching Duty rated

  • Catalog Number - QOU340

  • Circuit Breaker Type - Standard

Packaging

  • 1 ea

EAN

00785901418955

Part #

113822

Catalog #

QOU340

Commercial reference

QOU340

12-Digit UPC:

785901418955

Amperage:

40 Amp

Applications:

HACR and Switching Duty rated

Catalog Number:

QOU340

Circuit Breaker Type:

Standard

Country of Origin:

Mexico

Depths:

2.95 Inch

ERP_productname:

SQD QOU340 3P-240V-40A CB

Family Brand Name:

Square D

Heights:

4.05 Inch

Interrupt Rating:

10 kAIC

Length:

2.95 Inch

Mounting Type:

Unit Mount

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Sub Brand:

QOU

Tc Connection:

LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

2.25 in

SoneparProductId:

SKU_US_25460050

QO™ and QOU Miniature Circuit Breakers, QOU340, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Prop 65: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QOU2PAFLA; HLO1; BCV; QOUECB; QOULFSC1B; QOU2DTILA; QOUMFS1
