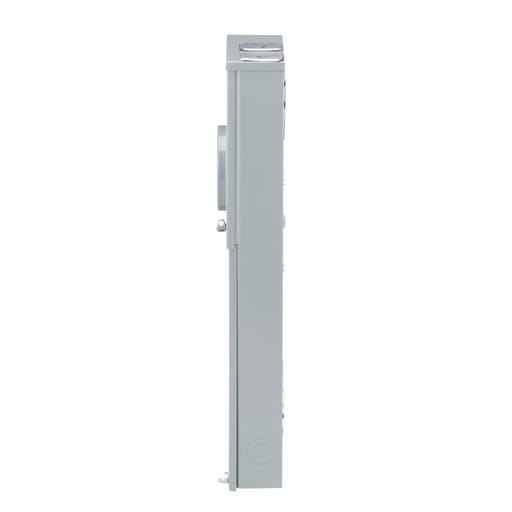

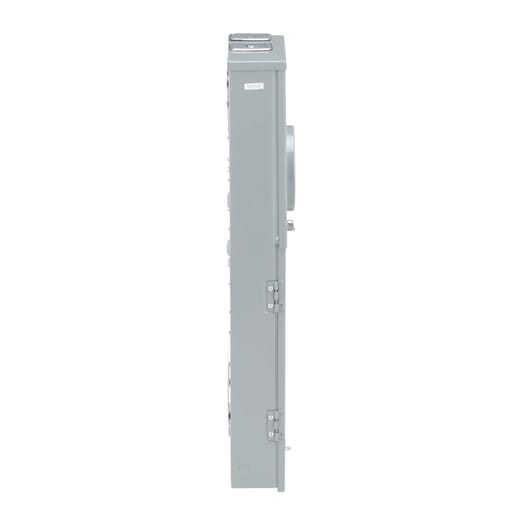

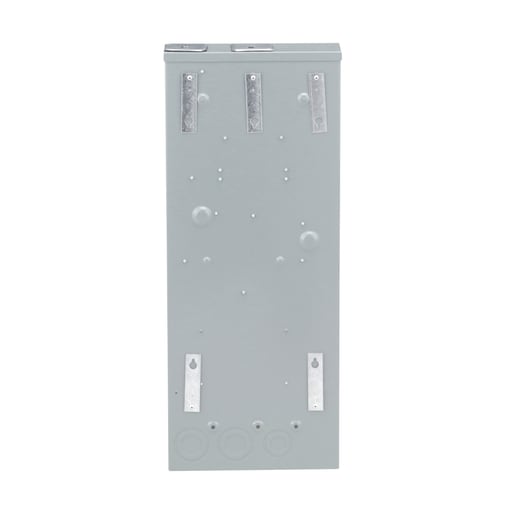

Square-D / Schneider - Square D RC816F200C 200 Amp 1-Phase 3-Wire Surface Mount Overhead/Underground Service Ringless Type Meter Main

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901863922

  • Amperage - 200 Amp

  • Catalog Number - RC816F200C

  • Conductor Size - 6 AWG-350 kcmil

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901863922

Part #

133063

Catalog #

RC816F200C

Commercial reference

RC816F200C

12-Digit UPC:

785901863922

Amperage:

200 Amp

Catalog Number:

RC816F200C

Conductor Size:

6 AWG-350 kcmil

Country of Origin:

Mexico

Depths:

5.07 Inch

ERP_productname:

SQD RC816F200C 200A RINGLESS FEE

Family Brand Name:

Square D

Heights:

35.13 Inch

Mounting Type:

Surface

Number of Circuits:

16

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Size:

14.37 IN,35.13 IN

Sub Brand:

HOMELINE

Type:

METER MAINS,RINGLESS

Widths:

14.37 in

Wire Size:

AWG 6...350 kcmil aluminium/copper)line side;AWG 12...AWG 2/0 aluminium/copper)service ground

SoneparProductId:

SKU_US_25514102

The Square D® Load Centers and Combination Service Entrance Devices, RC816F200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A100; HOM2175SB; LK100AN; QOM2200VH; QOM2200VH1021; HEPD25; HOM120CAFI; LK225AN; 5J; HEPD50; HOM120DF; HEPD80; HOM120; HOMFP; A125; HOM230; A150; A200; A250; PK15GTA - Cross Sell Products: HEPD80; HOM120; HOMFP; HOM2175SB
