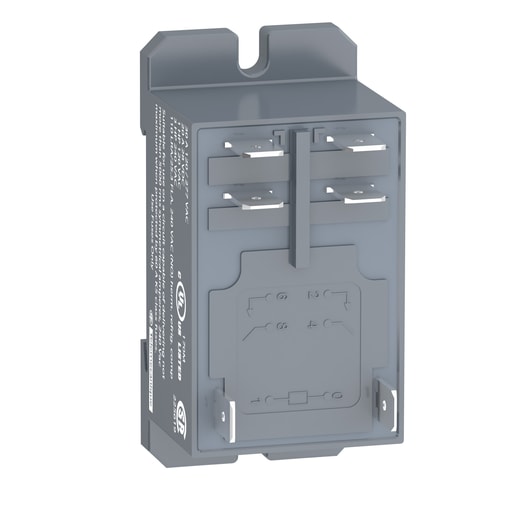

Square-D / Schneider - Square D RPF2ABD 24 VDC 30 Amp 2NO Din Rail/Panel Mount Plug-In Relay

Essential specifications

12-Digit UPC - 389119401534
Amperage - 30 Amp 277 V AC) NO UL-20 Amp 28 V DC) NO UL-30 Amp 250 V AC) NO IEC-25 Amp 28 V DC) NO IEC
Catalog Number - RPF2ABD
Country of Origin - China
ERP_productname - SQD RPF2ABD POWER RELAY 250V 25A RPF +OPTIONS

Packaging

1 ea

EAN

03389119401531

Part #

219886

Catalog #

RPF2ABD

Commercial reference

RPF2ABD

12-Digit UPC:

389119401534

Amperage:

30 Amp 277 V AC) NO UL-20 Amp 28 V DC) NO UL-30 Amp 250 V AC) NO IEC-25 Amp 28 V DC) NO IEC

Catalog Number:

RPF2ABD

Country of Origin:

China

ERP_productname:

SQD RPF2ABD POWER RELAY 250V 25A RPF +OPTIONS

Enclosure:

IP 40 CONFORMING TO IEC/EN 60529

Family Brand Name:

Schneider Electric

Heights:

68.5 mm

Tc Connection:

FLAT/SPADE (FASTON TYPE)

Type:

Plug-in relay

Widths:

33.7 mm

SoneparProductId:

SKU_US_25466755

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: RPF2BBD; RPF2AF7; RPF2AP7
