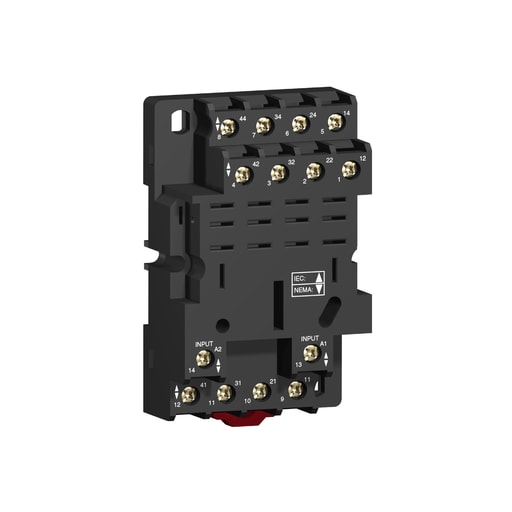

Square-D / Schneider - Square D RPZF4 250 Volt 16 Amp 35 mm Din Rail/Panel Mount Screw Clamp Terminal Relay Socket

CopyCopy
Square-D / Schneider - Square D RPZF4 250 Volt 16 Amp 35 mm Din Rail/Panel Mount Screw Clamp Terminal Relay Socket

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 389119402319

  • Amperage - 16 Amp

  • Applications - PLUG-IN RELAY RPM 4 C/O

  • Catalog Number - RPZF4

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

03389119402316

Part #

188841

Catalog #

RPZF4

Commercial reference

RPZF4

12-Digit UPC:

389119402319

Amperage:

16 Amp

Applications:

PLUG-IN RELAY RPM 4 C/O

Catalog Number:

RPZF4

Country of Origin:

USA

ERP_productname:

SQD RPZF4 PLUG-IN RELAY 250V 15A SOCKET

Enclosure:

IP20

Family Brand Name:

Schneider Electric

Size:

1.97 in

Sub Brand:

RPZ

Tc Connection:

- SCREW CLAMP TERMINALS, FLEXIBLE WITH CABLE END 1 X 0.25...2 X 1 MMA. / AWG 22...AWG 17- - SCREW CLAMP TERMINALS, SOLID WITHOUT CABLE END 1 X 0.5...2 X 1.5 MMA. / AWG 20...AWG 16

Type:

Socket;Flat

Voltage:

250 Volt

Widths:

50 mm

SoneparProductId:

SKU_US_69895662

"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: RPM42BD; RUW101MW; RPM42P7; RPM41BD; RPM42F7; RPM41P7 - Cross Sell Products: RPZF1; RPZF2; RPZF3
