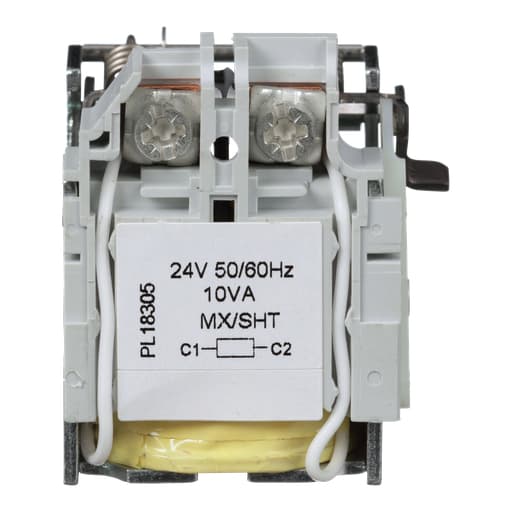

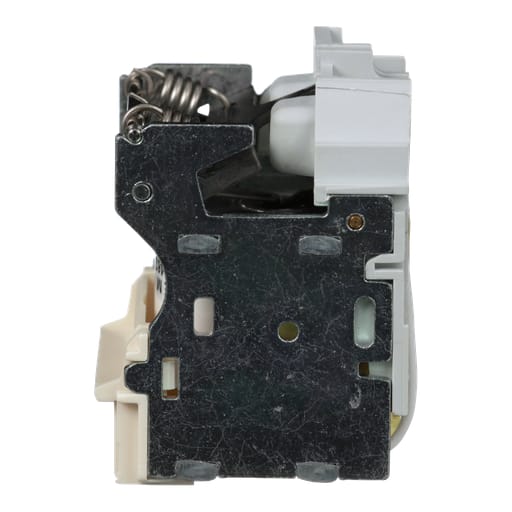

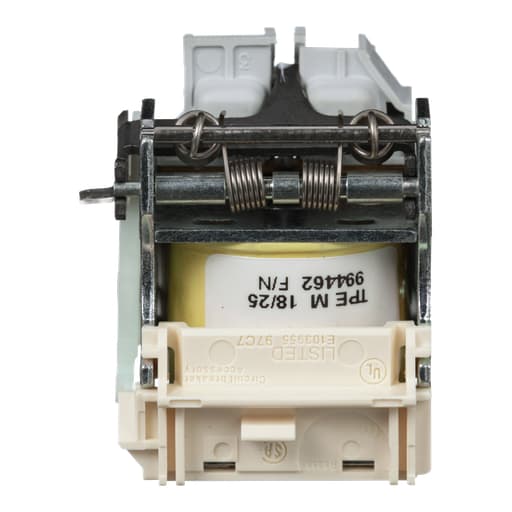

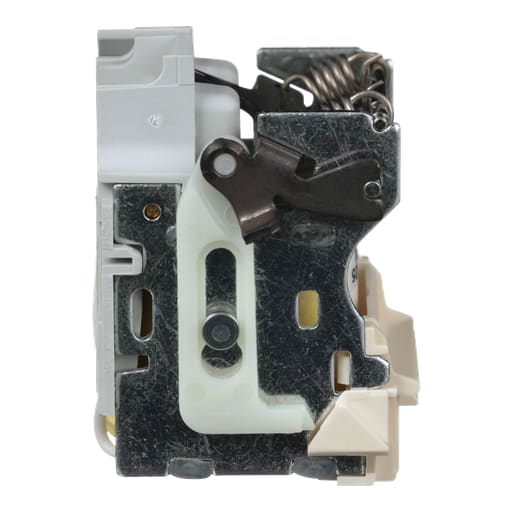

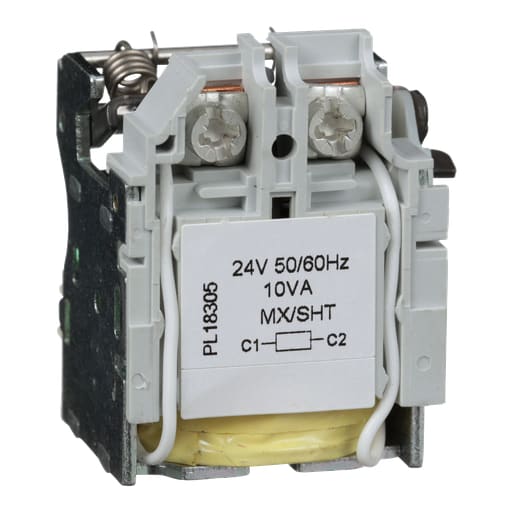

Square-D / Schneider - Square D S29384 24 VAC Standard Circuit Breaker Shunt Trip
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901467595
Applications - H-frame;J-frame;L-Frame
Catalog Number - S29384
Circuit Breaker Type - H-Frame,J-Frame
Country of Origin - USA
Packaging
1 ea
EAN
00785901467595
Part #
194521
Catalog #
S29384
Commercial reference
S29384
12-Digit UPC:
785901467595
Applications:
H-frame;J-frame;L-Frame
Catalog Number:
S29384
Circuit Breaker Type:
H-Frame,J-Frame
Country of Origin:
USA
ERP_productname:
SQD S29384 CIRCUIT BREAKER SHUNT TRIP 24V AC
Family Brand Name:
Square D
Frame:
H, J, AND L FRAME
Sub Brand:
POWERPACT
Trip Type:
SHUNT
Type:
Shunt trip
Voltage:
24-24 Volt
SoneparProductId:
SKU_US_26510163
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ? 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
