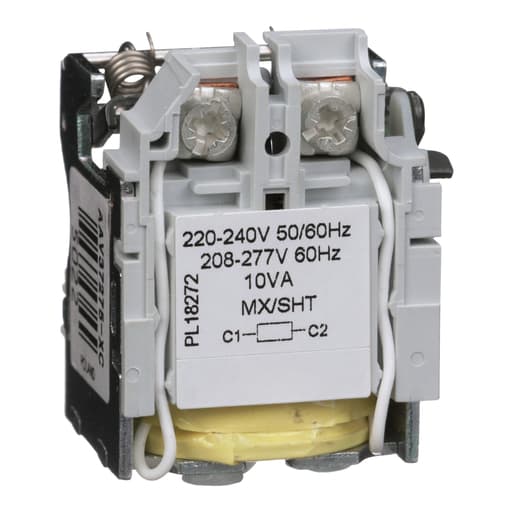

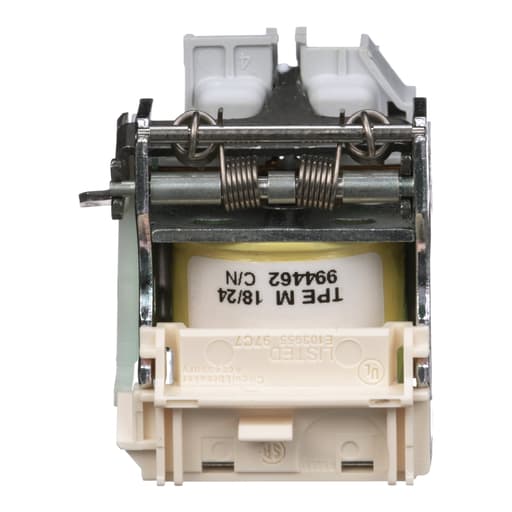

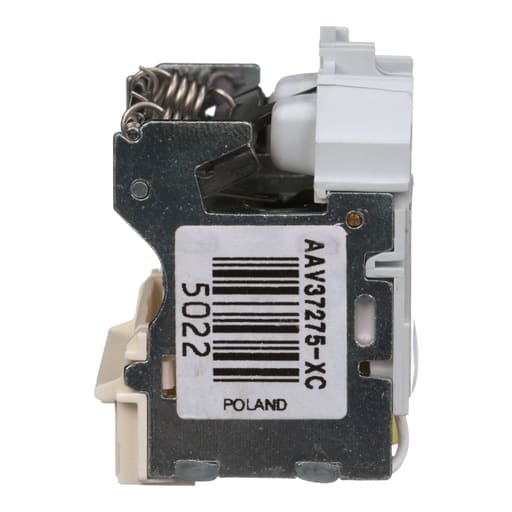

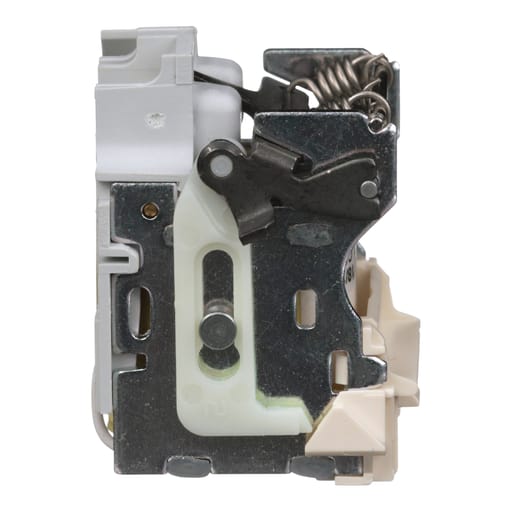

Square-D / Schneider - Square D S29387 208/277 VAC Standard Circuit Breaker Shunt Trip

The PowerPacT™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ? 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LDA36400U31X; LDF36600U43XAAUOMO; LDF36600U53X; LDL36250U31X; LDL36400CU33X; LDL36400U33X; LDL36600U33X; LGA34400WU31X; LGA36250CU31X; LGA36400CU31X; LGA36400CU43X; LGA36400U43X; LGA36600U31XYP; LGF36400CU31X; LGF36400U33X; LGF36600U31X; LGL34400WU31X; LGL36000S40X; LGL36250CU31X; LGL36250CU33X; LGL36250U31X; LGL36250U33X; LGL36400CU33X; LGL36400CU43X; LGL36400CU44X; LGL36400U43X; LGL36400U44X; LGL36600M38X; LGL36600U44X; LGL37060D33; LGL46250U31X; LGL46400U31X; LGM36400CU31X; LGM36600U31X; LGP36400CU31X; LGP36400CU33X; LGP36400U31X; LGP36400U33X; LGP36600U31X; LJA34400WU31X; LJA36250U31X; LJA36250U33X; LJA36400CU31X; LJA36400CU33X; LJA36400CU43X; LJF36400CU31X; LJL36250U31X; LJL36250U33X; LJL36400CU33X; LJL36400M37X; LJL36400U33X; LJL36400U43X; LJL36600M38X; LJL36600U33X; LJM36600U31X; LJP36600U33X; LLA36400U33X; LLA36600U31X; LLL36600U31X; LLL37040D30; LLL37060D33; LRA36400U31X; LRL36400U31X
