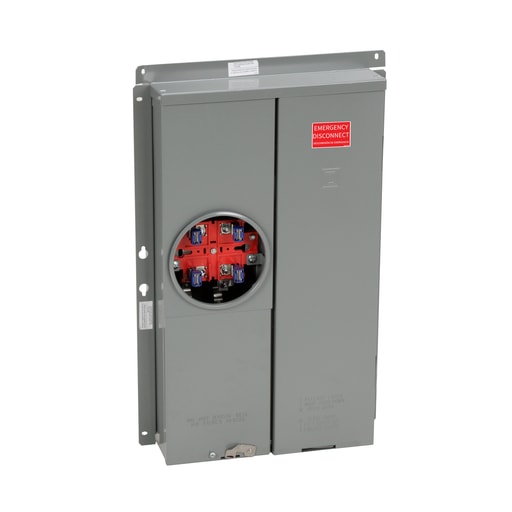

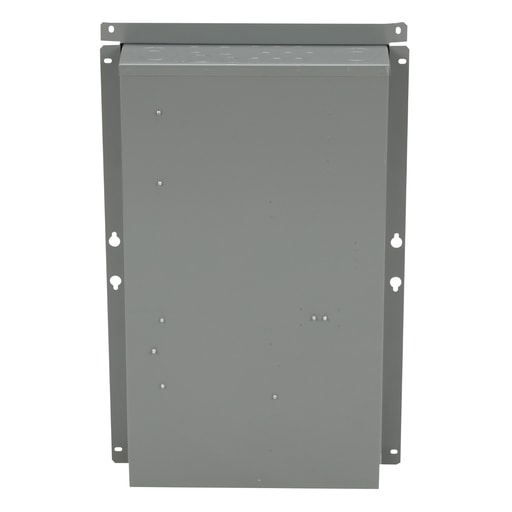

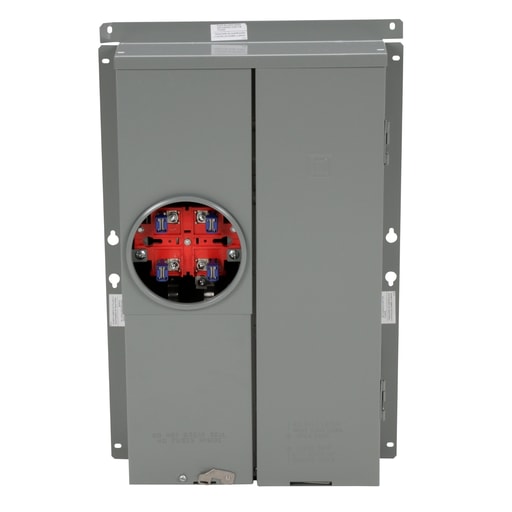

Square-D / Schneider - Square D SC1624M125F Meter Main CSED All-In-One Semi-Flush 125A

Homeline ring type single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 16 spaces and 24 circuits. This semiflush mounted device has UL listed rated current rating as 125A and short-circuit current 10kA. Factory installed main reaker, compact design, overhead and or underground feed, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 5J; HOM2175SB; QOM2125VH; HEPD25; HOM220GFI; HOMFP; HEPD50; HOM120; A125; HEPD80; HOM120DF; A150; HOM115CAFI; A200; A250; PK15GTA
