Square-D / Schneider - Square D SC1624M125S Meter Main All-In-One Ring Type OH/UG 125A Surface

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901308829

  • Amperage - 125 Amp

  • Catalog Number - SC1624M125S

  • Conductor Size - 6-2/0 AWG

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901308829

Part #

113716

Catalog #

SC1624M125S

Commercial reference

SC1624M125S

12-Digit UPC:

785901308829

Amperage:

125 Amp

Catalog Number:

SC1624M125S

Conductor Size:

6-2/0 AWG

Country of Origin:

Mexico

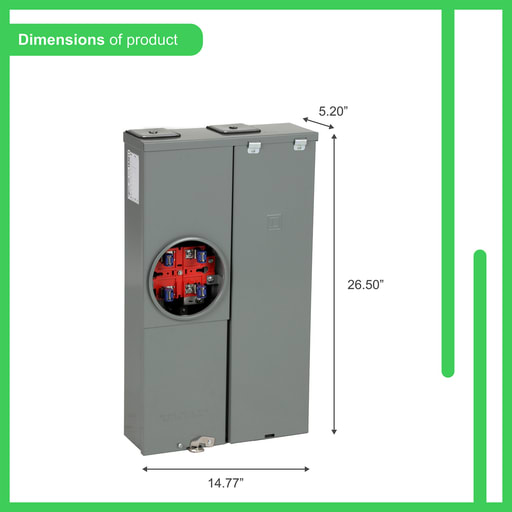

Depths:

5.2 Inch

ERP_productname:

SQD SC1624M125S ALL IN ONE, HOMELINE, CSED, RINGED SOCKET, 125A, SURFACE MOUNT, 16 SPACES, 24 CIRCUITS, 10KA SCCR, NO BYPASS

Family Brand Name:

Square D

Heights:

26-1/2 Inch

Mounting Type:

Surface

Number of Circuits:

24

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Sub Brand:

HOMELINE

Type:

ALL-IN-ONE,RINGED

Widths:

14.77 in

Wire Size:

AWG 6...AWG 2/0 aluminium)line side;AWG 6...AWG 2/0 copper)line side;AWG 6...AWG 2/0 aluminium)service ground;AWG 6...AWG 2/0 copper)service ground

SoneparProductId:

SKU_US_26414684

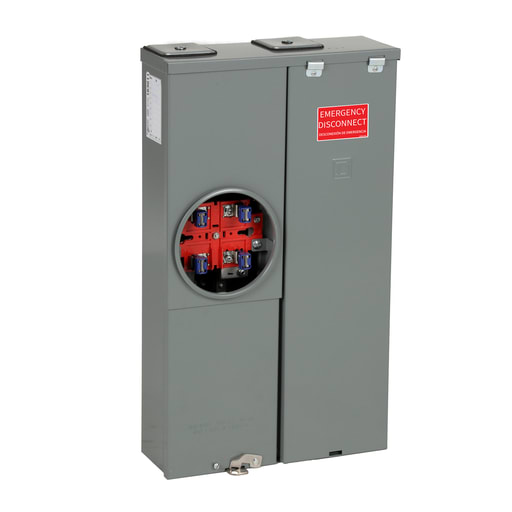

The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 5J; ACP; HOM2175SB; QOM2125VH; HEPD25; HOM220GFI; HOMFP; HEPD50; HOM120; A125; HEPD80; HOM120DF; A150; HOM115CAFI; A200; A250; PK15GTA
