Square-D / Schneider - Square D SC2040M125PF Solar Ready Main Breaker Load Center 125A 20/40 Space Comb. Service Entrance

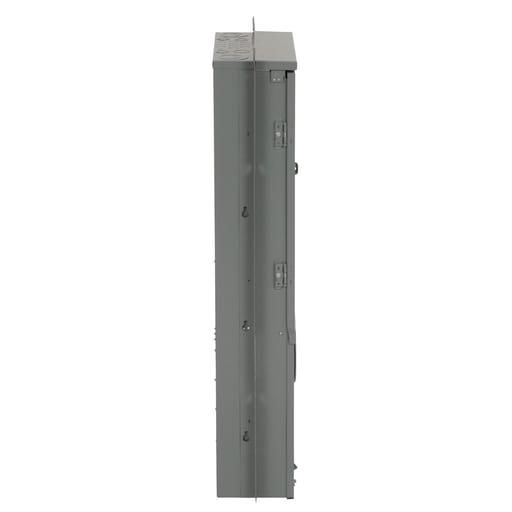

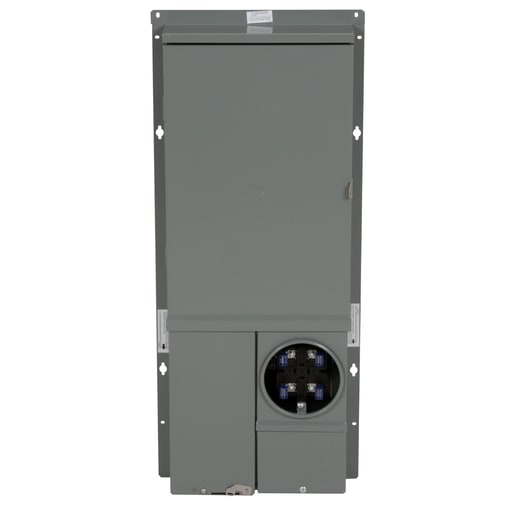

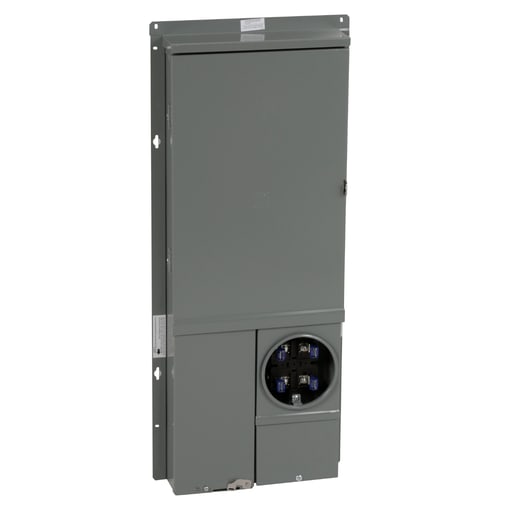

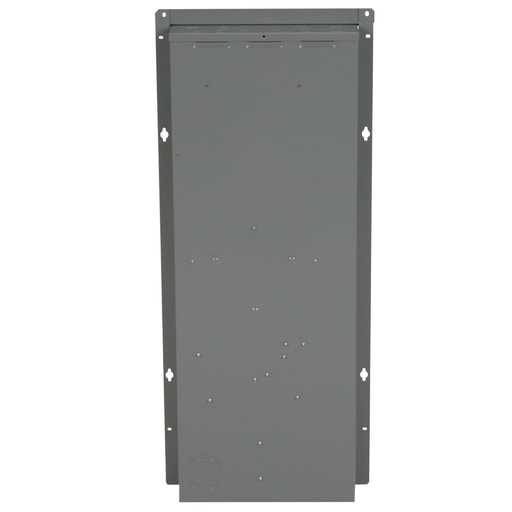

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service with the addition of tunnel kit (SCTKP20) or underground service. The service disconnect is a QOM2125VH with a maximum rating of 125 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 inches tall, 16.80 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ACP; HOM2175SB; LK100AN; QOM2125VH; SR69064A; 5J; HEPD25; HOM220GFI; HEPD50; HOM120; SCTKP20; HEPD80; HOM120PDF; SR69064AF; A200L; HOM115PCAFI; HOM250PSPD; A250L; HOMFP; PK15GTA
